Driver Seat Belt Tensioner Squib

Component ID: 80
Component : DRIVER SEAT BELT TENSIONER SQUIB

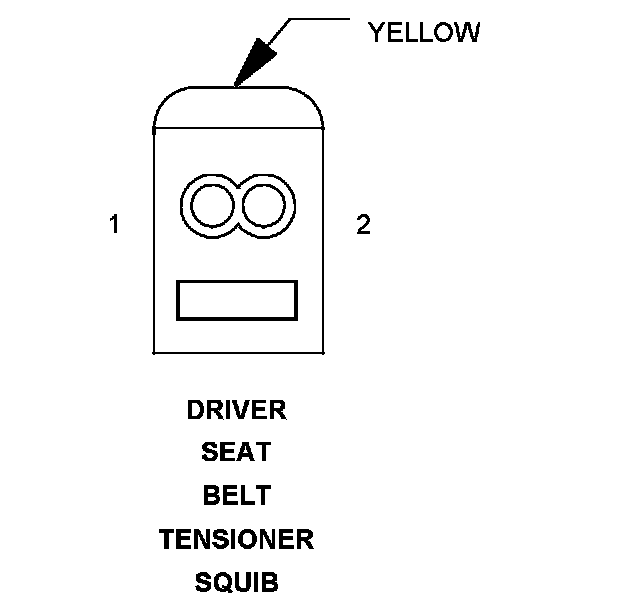

Connector:
Name : DRIVER SEAT BELT TENSIONER SQUIB
Color : YELLOW
# of pins : 2




Pin Circuit Description
1 20BL DRIVER SEAT BELT SQUIB LINE 2
2 20BR/YL DRIVER SEAT BELT SQUIB LINE 1
