Passenger Power Seat

Component ID: 219

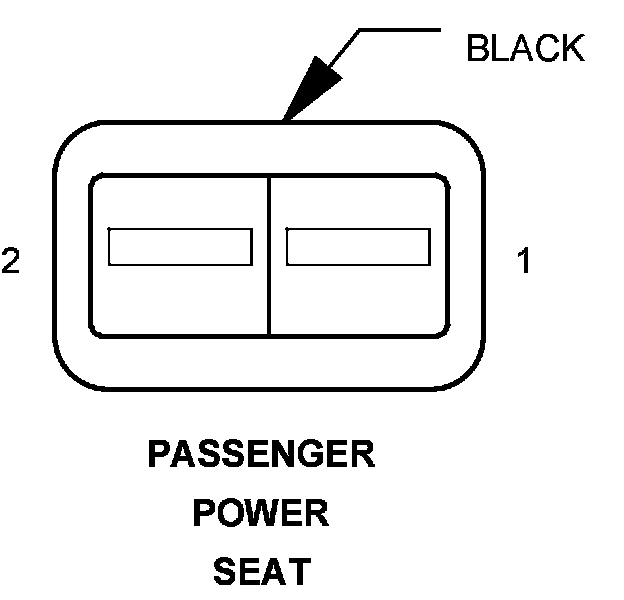

Component : PASSENGER POWER SEAT

Connector:
Name : PASSENGER POWER SEAT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 14RD/DG FUSED POWER SEAT RELAY OUTPUT
2 14BR GROUND
