Canister Purge Solenoid

Component ID: 90

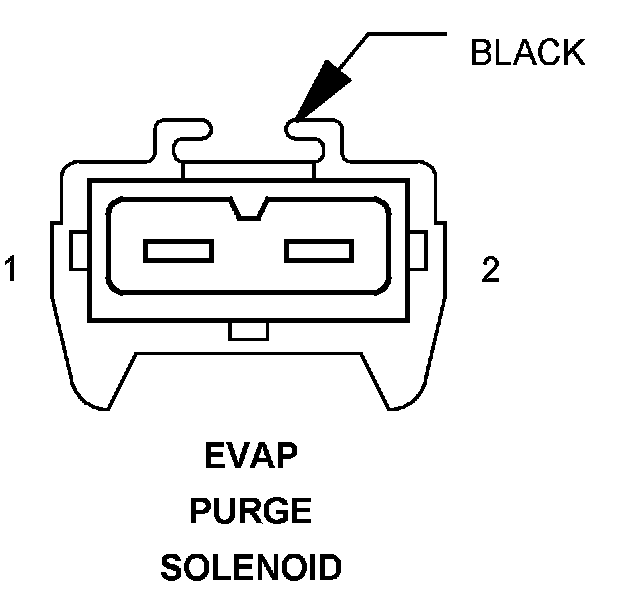

Component : EVAP PURGE SOLENOID

Connector:
Name : EVAP PURGE SOLENOID
Color : BLACK
# of pins : 2




Pin Circuit Description
1 18RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
2 18BR/RD EVAP PURGE SOLENOID CONTROL

Component Location - 2
