Air Door Actuator / Motor, HVAC

Component ID: 242

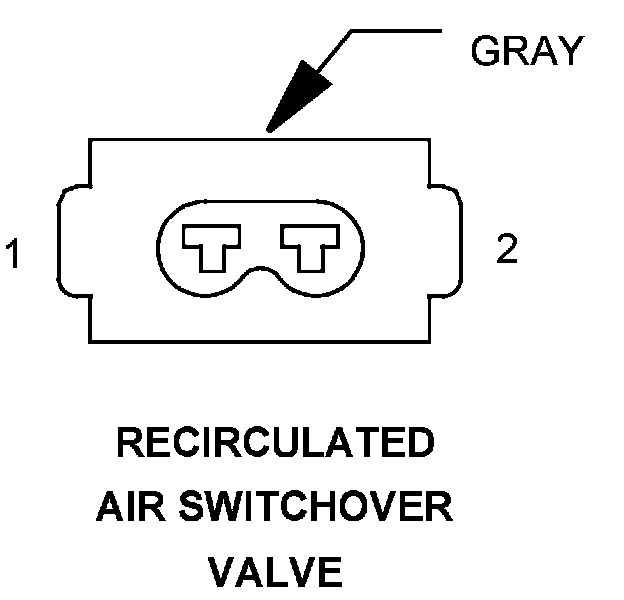

Component : RECIRCULATED AIR SWITCHOVER VALVE

Connector:
Name : RECIRCULATED AIR SWITCHOVER VALVE
Color : GRAY
# of pins : 2




Pin Circuit Description
1 18BR/YL RECIRCULATED AIR SWITCHOVER VALVE CONTROL
2 18PK/RD/BL FUSED IGNITION SWITCH OUTPUT
