Rear Brake Hose

REAR BRAKE HOSE

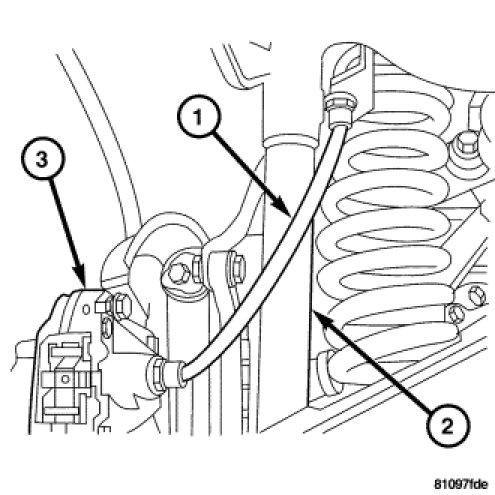

1. Connect the brake hose (1) to the brake line connection.




2. Route the brake hose (1) behind the rear shock (2) and connect to the caliper (3).
3. Install the wheel and tire assembly. Procedures.
4. Lower the vehicle.
5. Fill and bleed the brake system.
- Manual bleeding: Brake Bleeding.
- Pressure bleeding: Brake Bleeding.
