Front Brake Hose

FRONT BRAKE HOSE

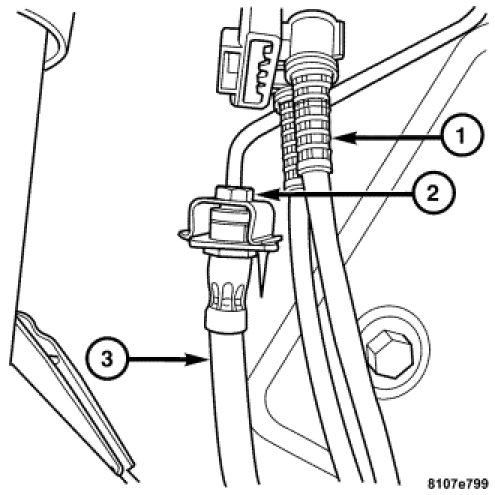

1. Connect the brake hose (3) to the brake line connection (2).

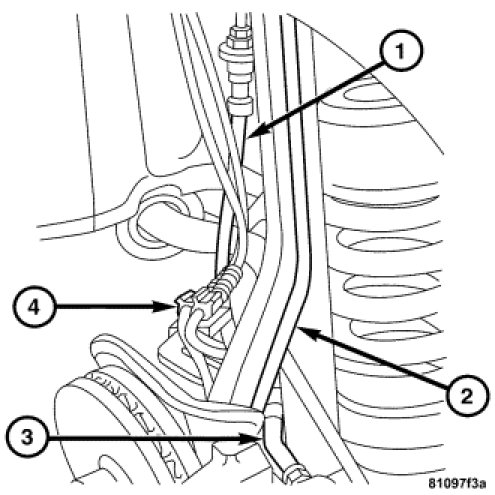

2. Route the brake hose (1) behind the steering knuckle (2) and connect to the caliper.




3. Connect the brake hose (4) at the caliper (3).
4. Install the wheel and tire assembly. Procedures.
5. Lower the vehicle.
6. Fill and bleed brake system.
- Manual bleeding: Brake Bleeding.
- Pressure bleeding: Brake Bleeding.
