Power Mirrors
Power Mirrors
SCHEMATICS AND DIAGRAMS
POWER/HEATED MIRRORS CIRCUIT DIAGRAM

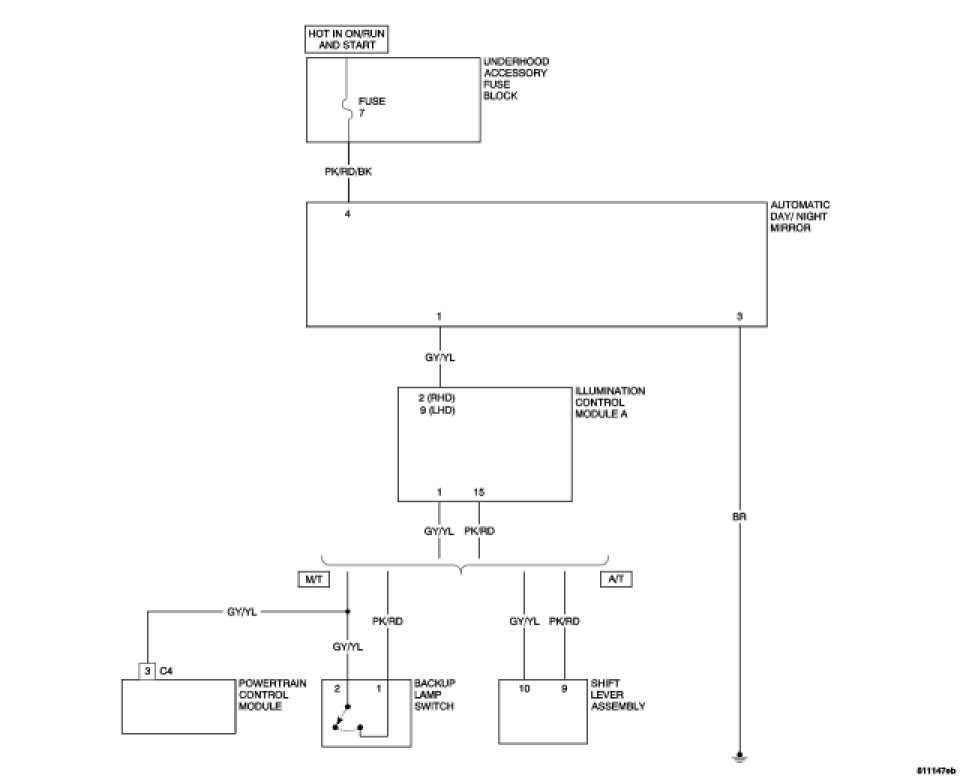

AUTO DIMMING DAY/NIGHT MIRROR CIRCUIT DIAGRAM
