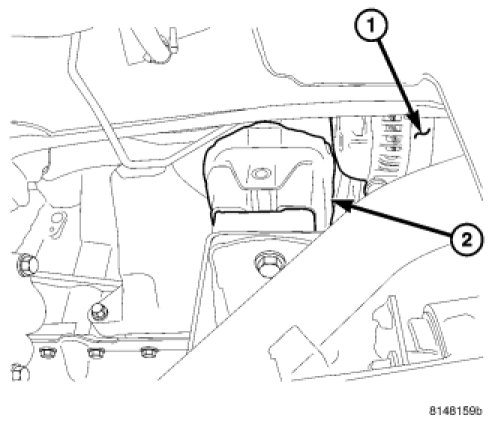

Left Engine Mount - AWD

INSTALLATION





1. Carefully position the engine mount and hand tighten the mount retaining bolts.
2. Tighten the engine mount to bracket bolts to 60 Nm (44 lbs. ft.).
3. Lower the engine onto the cradle and remove the jack stand.
4. Tighten the engine mount to cradle bolt to 75 Nm (55 lbs. ft.).
5. Install the right front wheel.
6. Lower the vehicle.
7. Connect the negative battery cable.
