Left Engine Mount







INSTALLATION

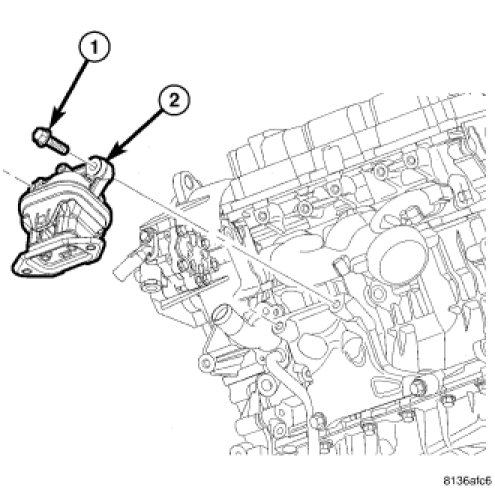

1. Install the left mount (2) to the engine mounting bracket. Hand tighten fasteners.
2. Install and hand tighten the engine mount through studs.
3. Tighten the engine mount to mounting bracket fasteners to 75 Nm ( 55 ft.lbs.).
4. Lower the engine and remove lifting device.
5. Tighten the engine mount through studs to nut to 12 Nm ( 106 in.lbs.).

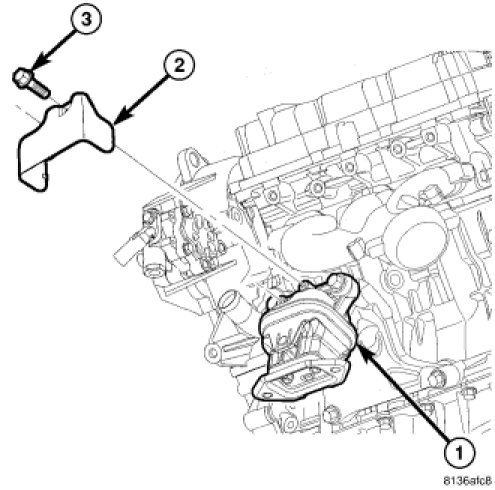

6. Install the engine mount heat shield (2). Tighten fasteners to 11 Nm ( 97 in.lbs.).
7. Install the left engine mount to cradle nuts and tighten both to 75 Nm (55 ft. lbs.).
8. Lower the vehicle.
9. Connect the negative battery cable.
