System Specifications






BRAKE COMPONENTS

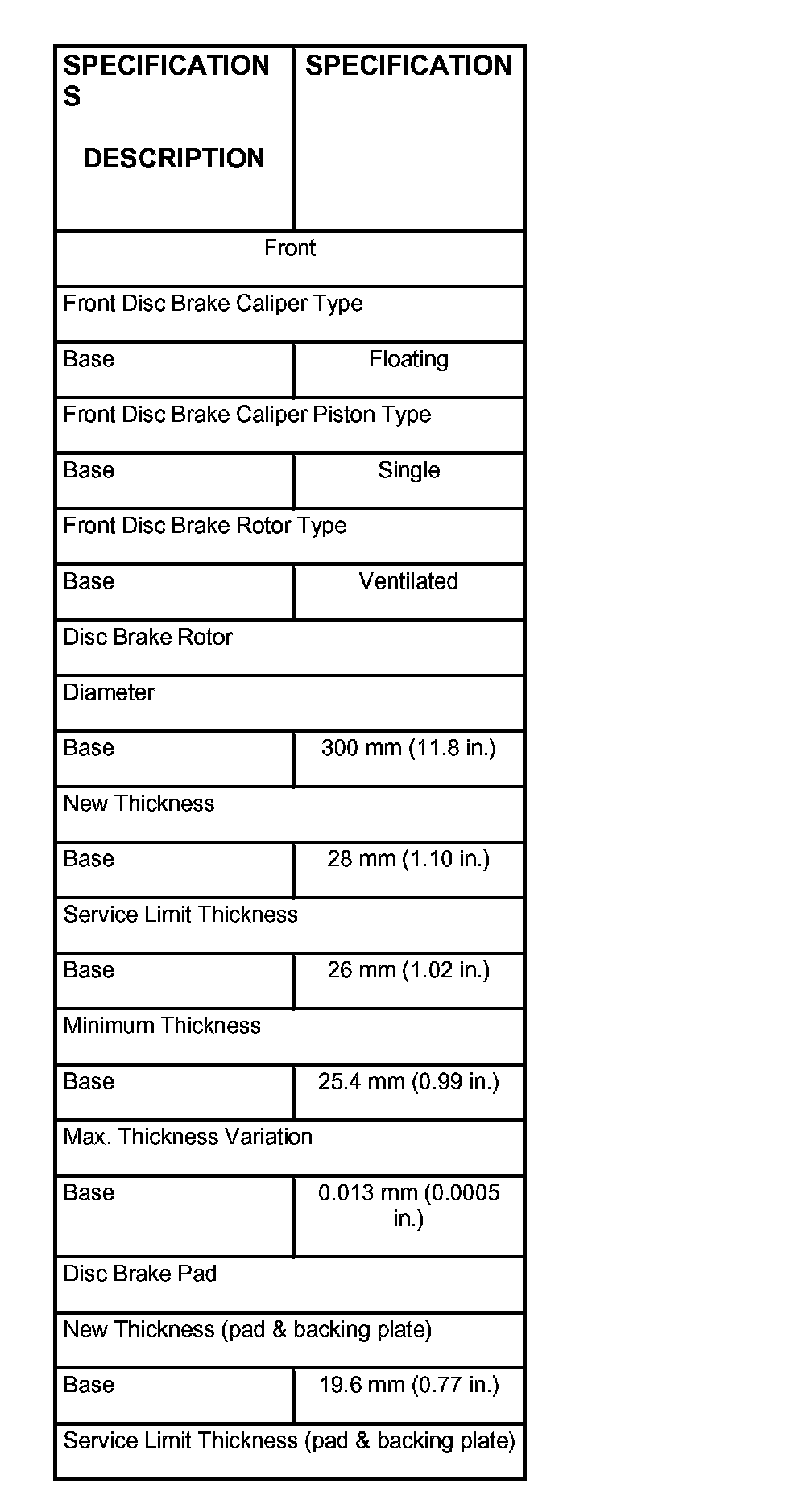

BRAKE COMPONENTS (Part 1):

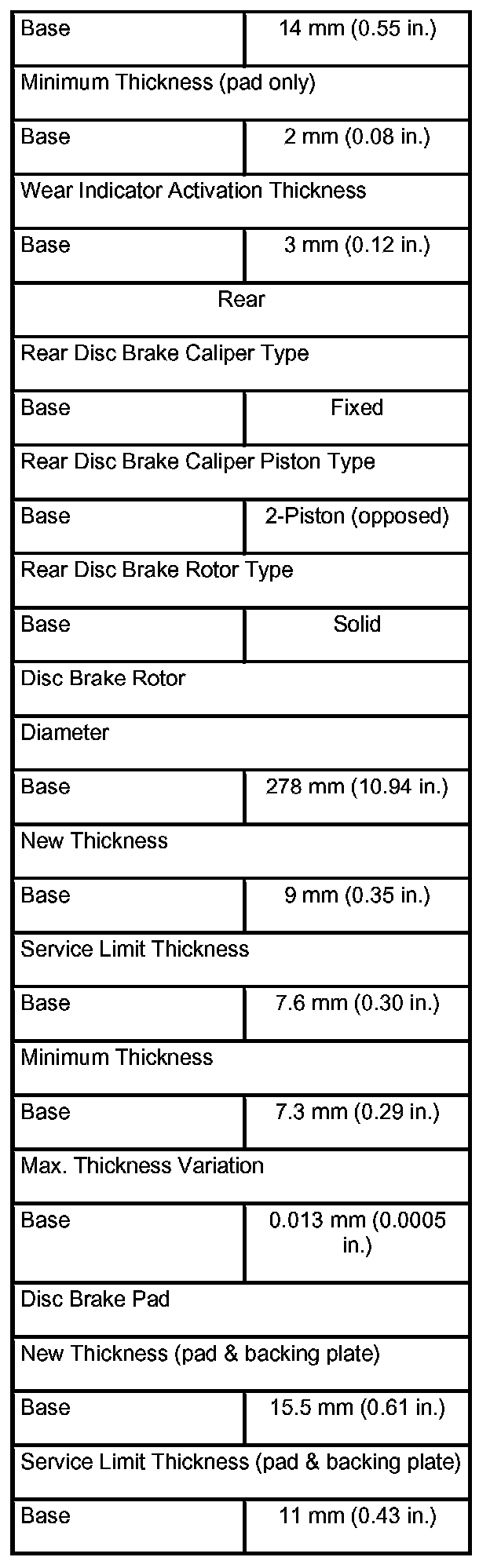

BRAKE COMPONENTS (Part 2):

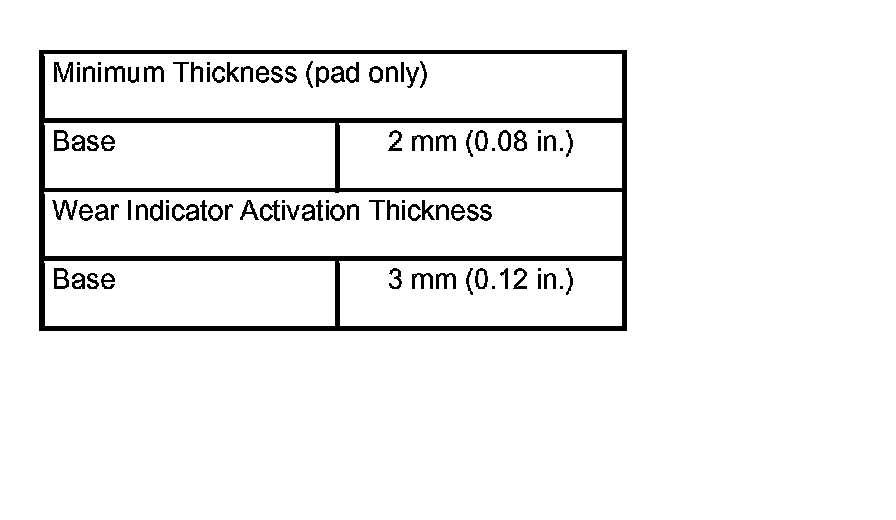

BRAKE COMPONENTS (Part 3):





TORQUE SPECIFICATIONS

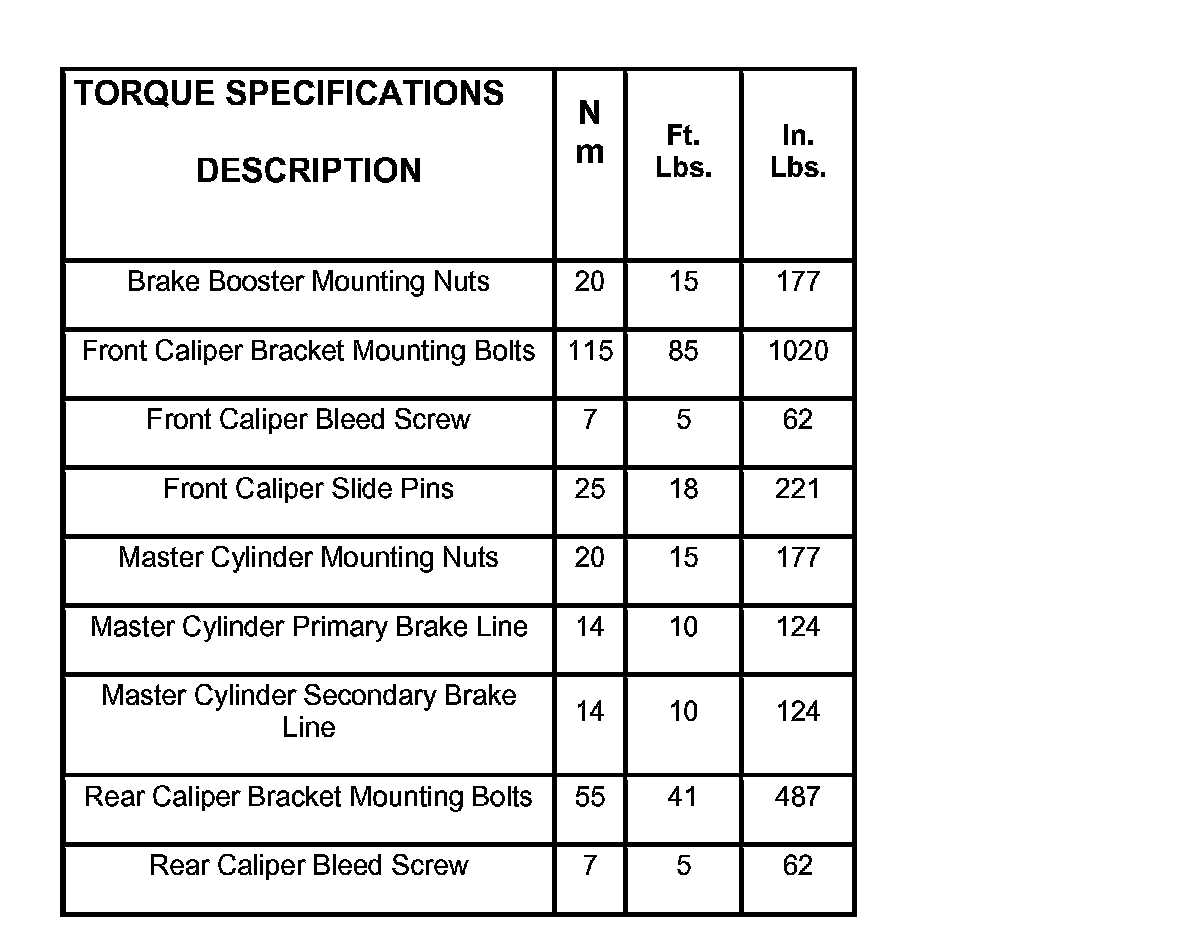

Torque Specifications:
