Sebring Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Systems
Body Control Systems

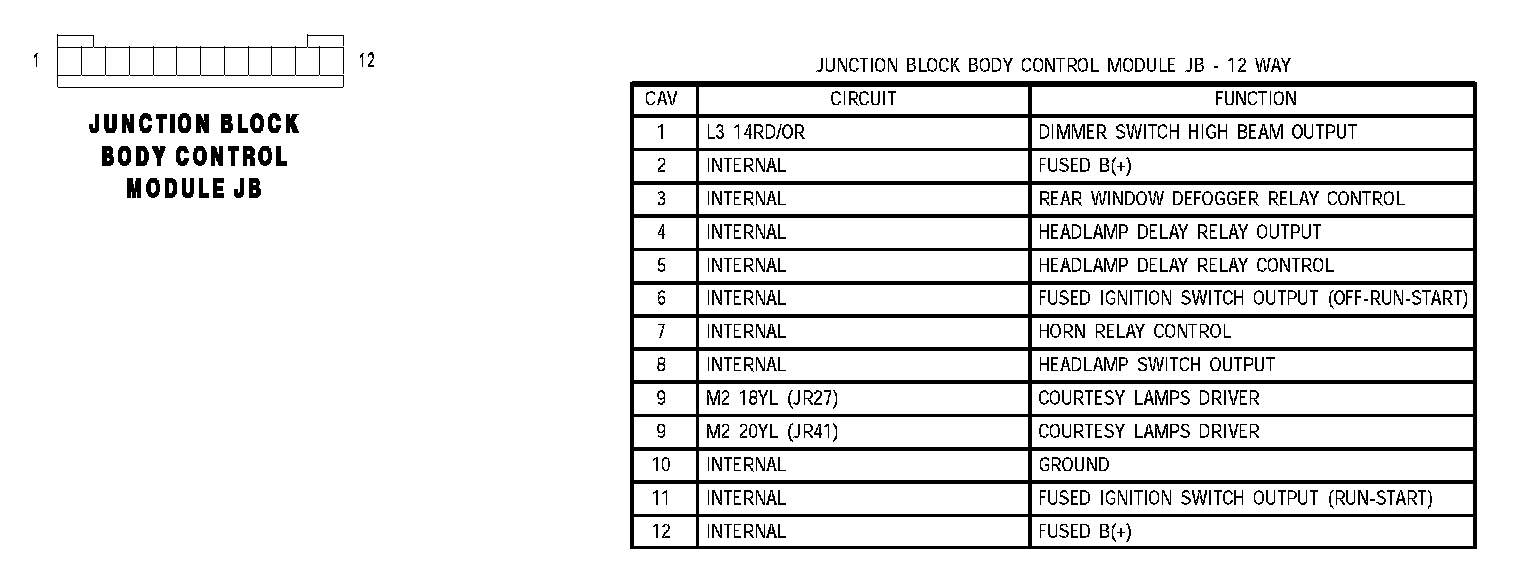

Junction Block Body Control Module JB:
