Home >> Chrysler >> 2006 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Camshaft Position Sensor >> Locations

Camshaft Position Sensor: Locations

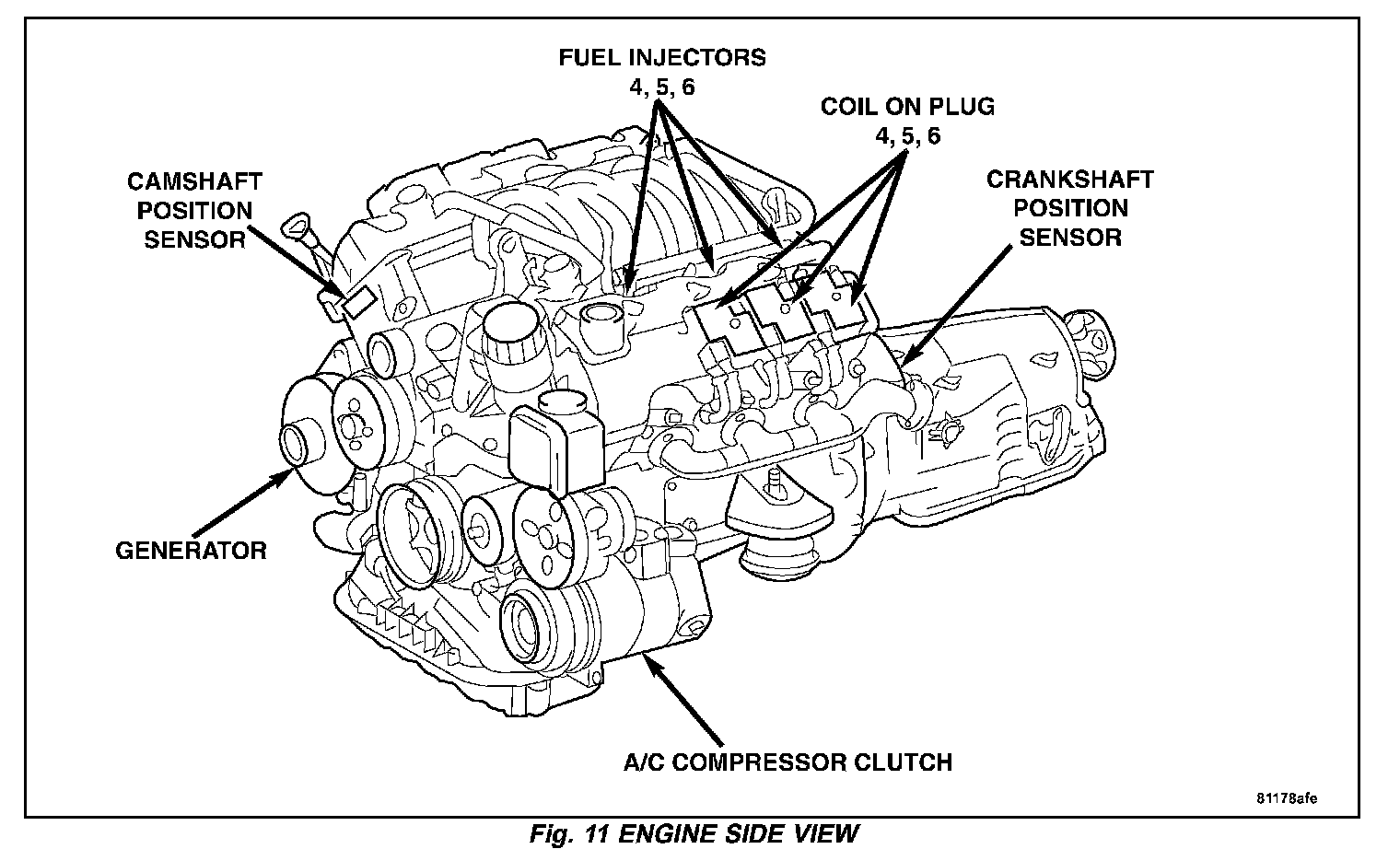

Fig. 11:

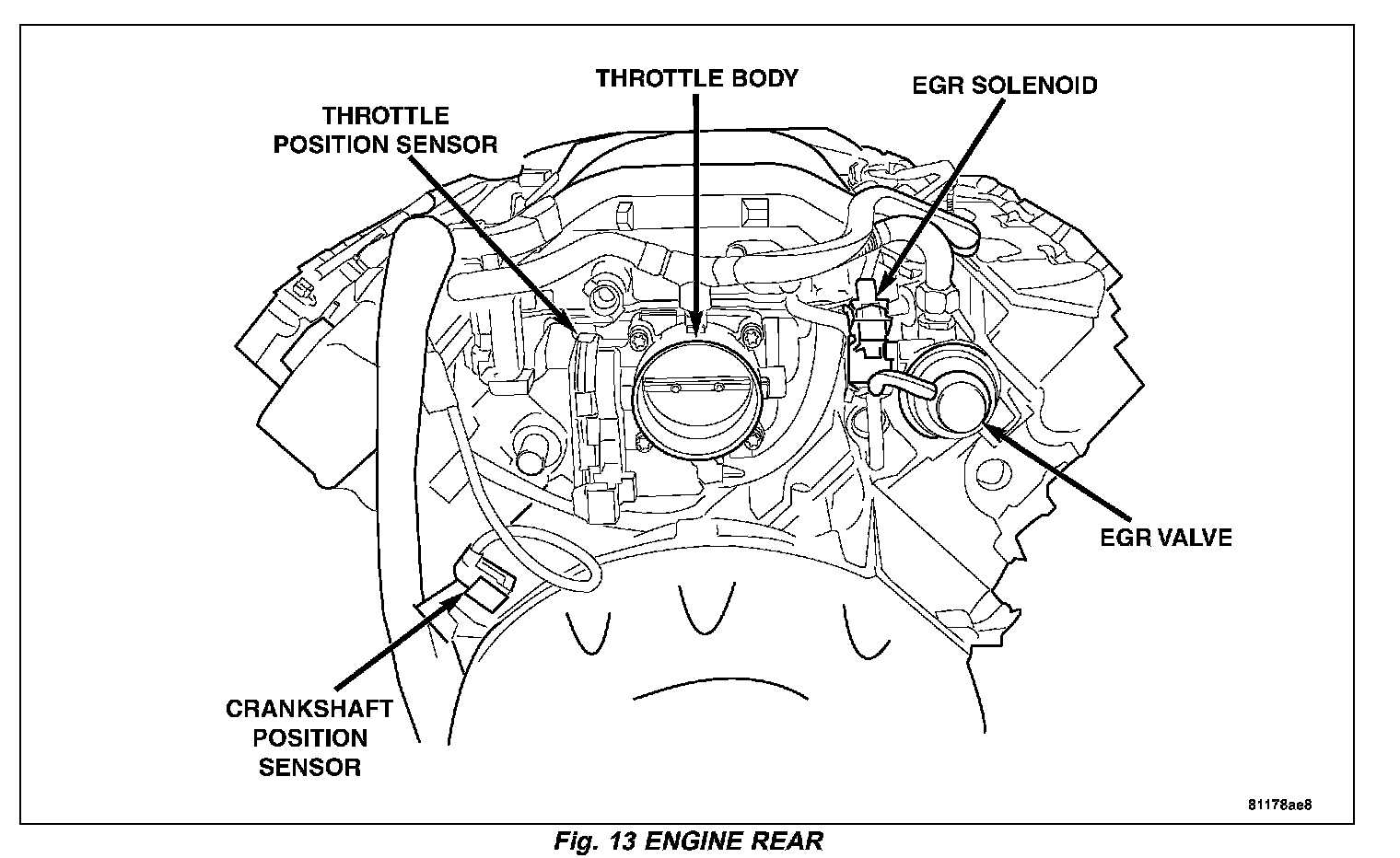

Fig. 13:

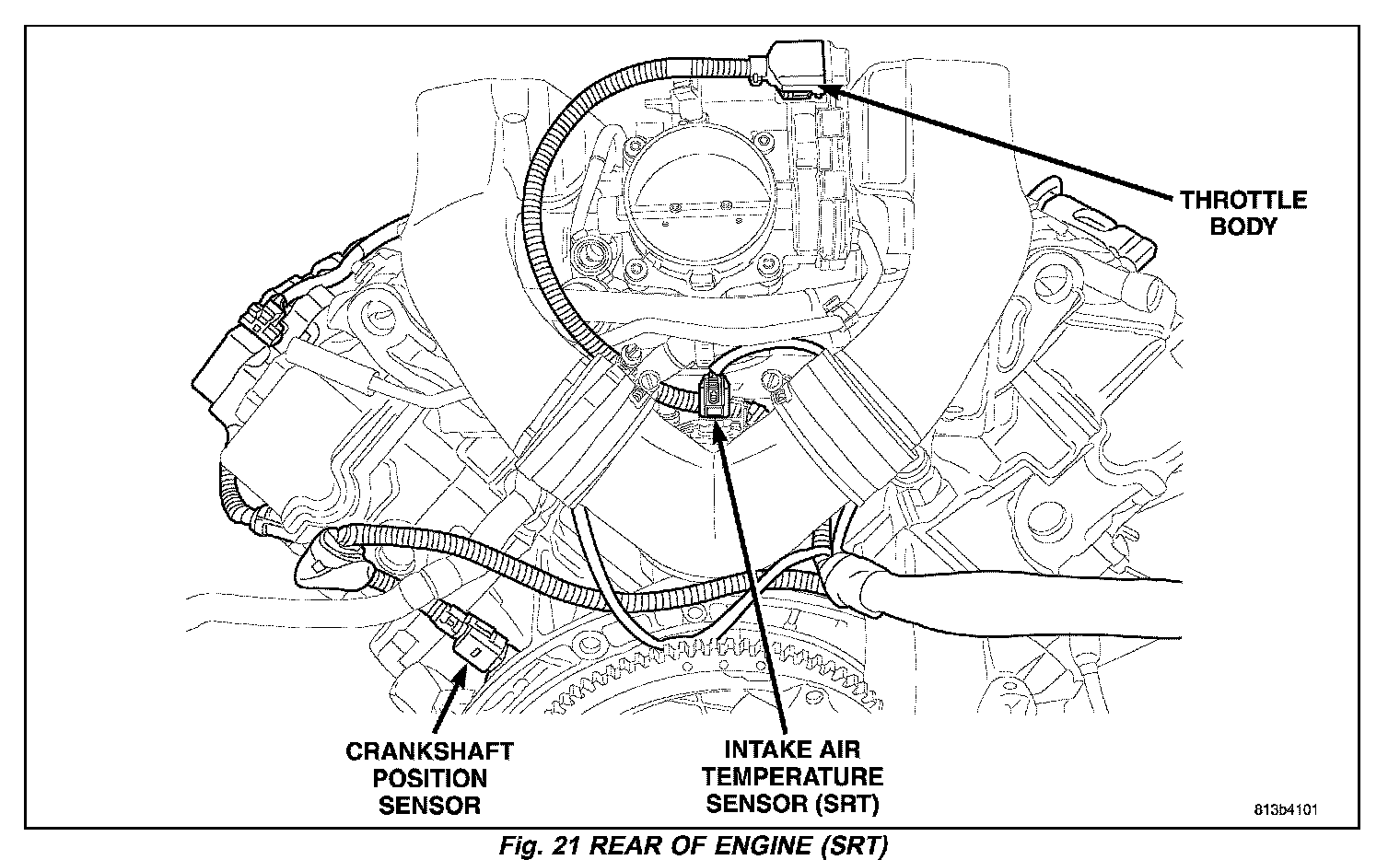

Fig. 21:
