Home
>>
Chrysler
>>
2005
>>
Pacifica V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

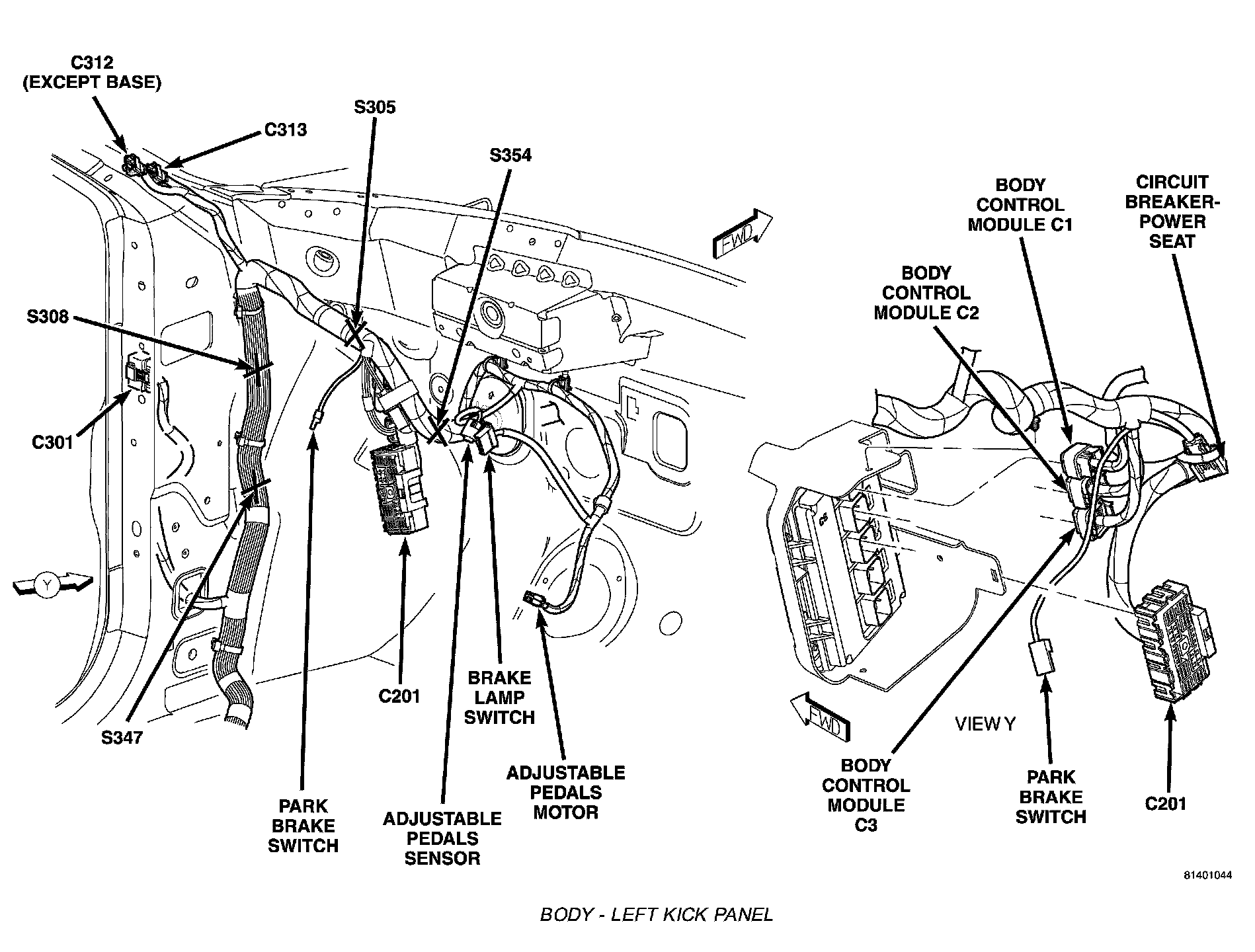

Figure 28
Figure 28
Body - Left Kick Panel:
