Home
>>
Chrysler
>>
2005
>>
Pacifica V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Sensor/Switch
Seat Sensor/Switch

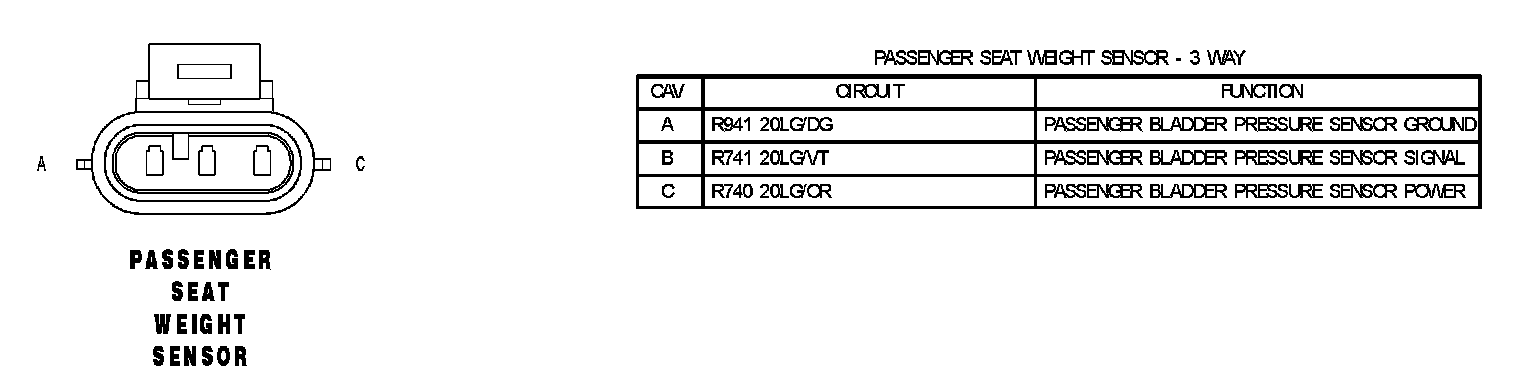

Passenger Seat Weight Sensor:
