Connector Views
>>
Cooling System
>>
System Diagram
System Diagram

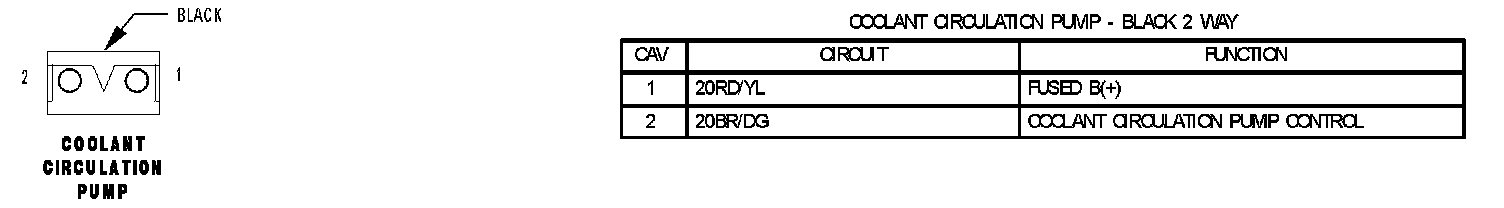

Coolant Circulation Pump:

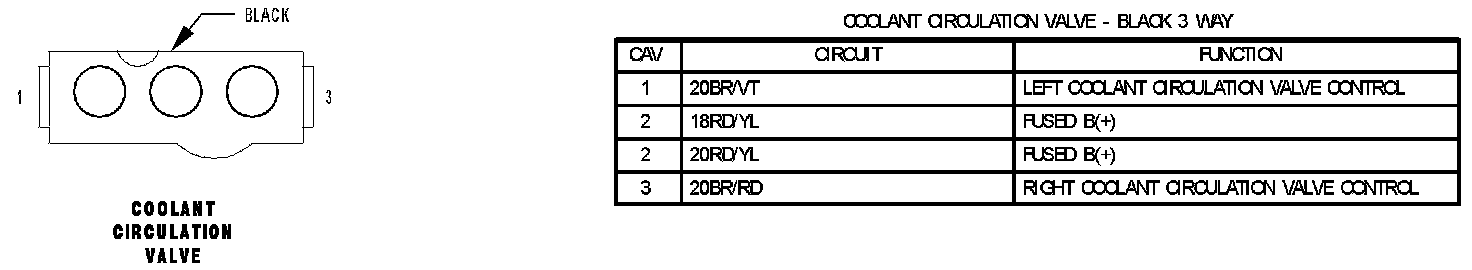

Coolant Circulation Valve:
