Home >> Chrysler >> 2004 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Locations

Body Control Module: Locations

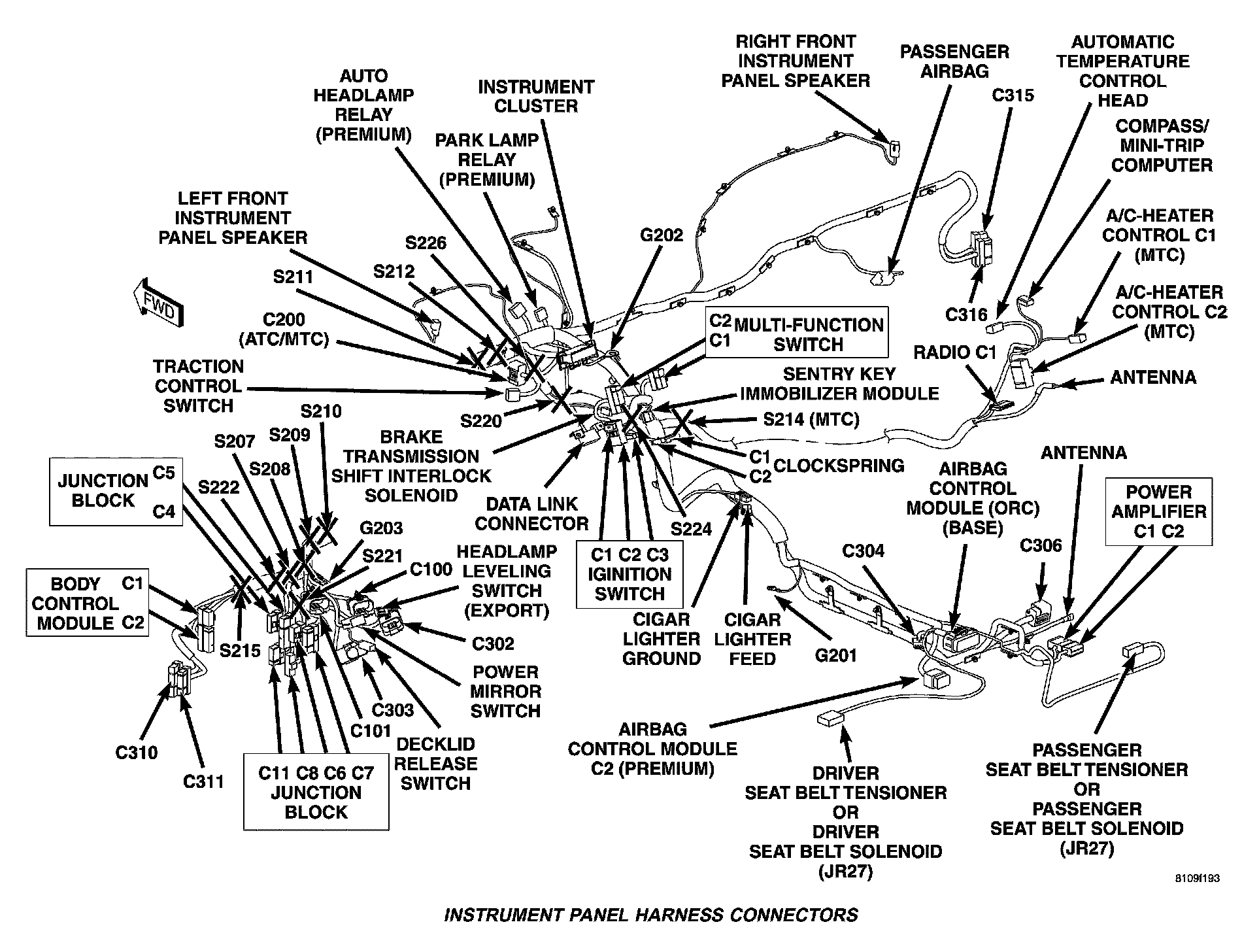

Instrument Panel Harness Connectors:

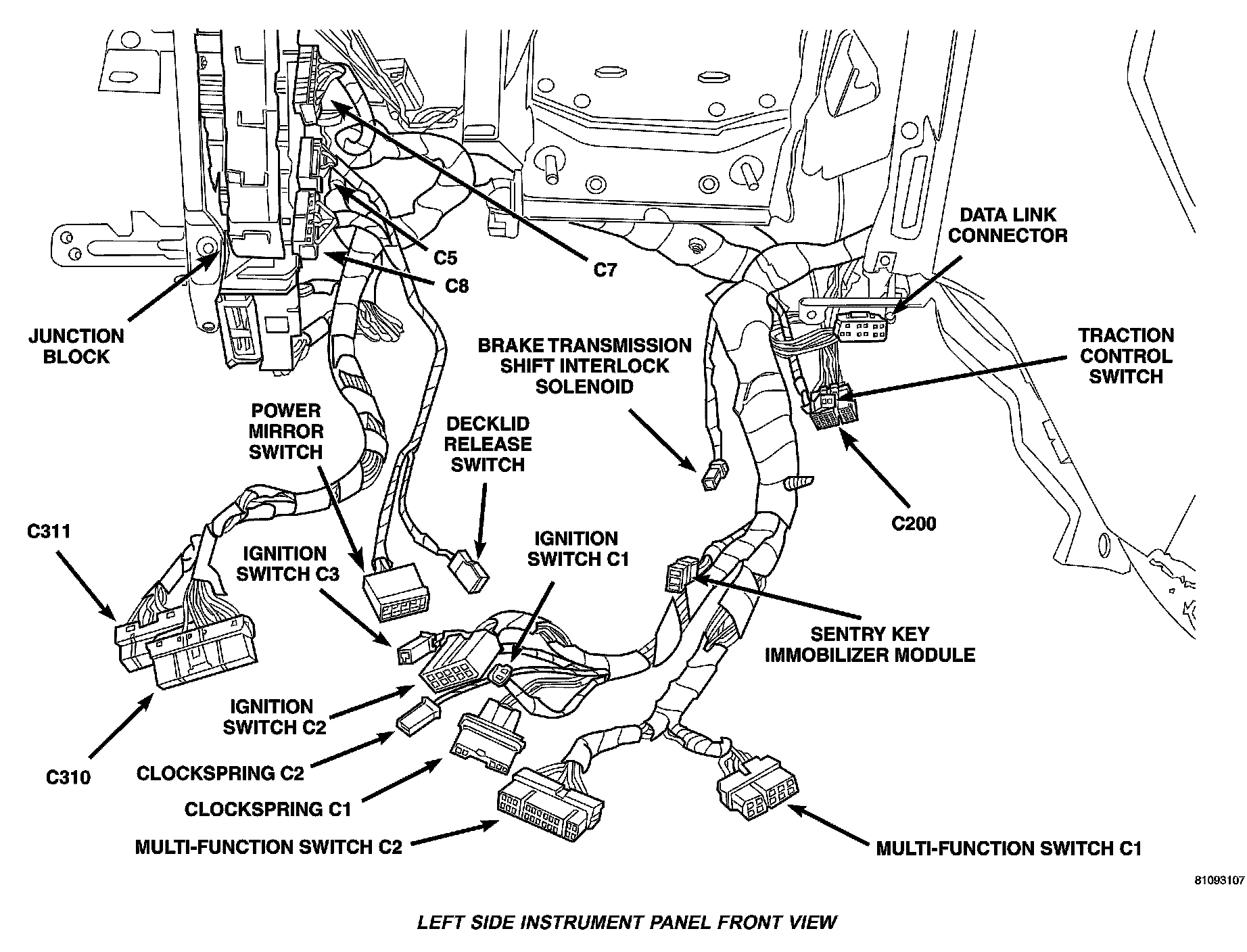

Left Side Instrument Panel Front View:
