Seat Temperature Control Module
Seat Temperature Control Module

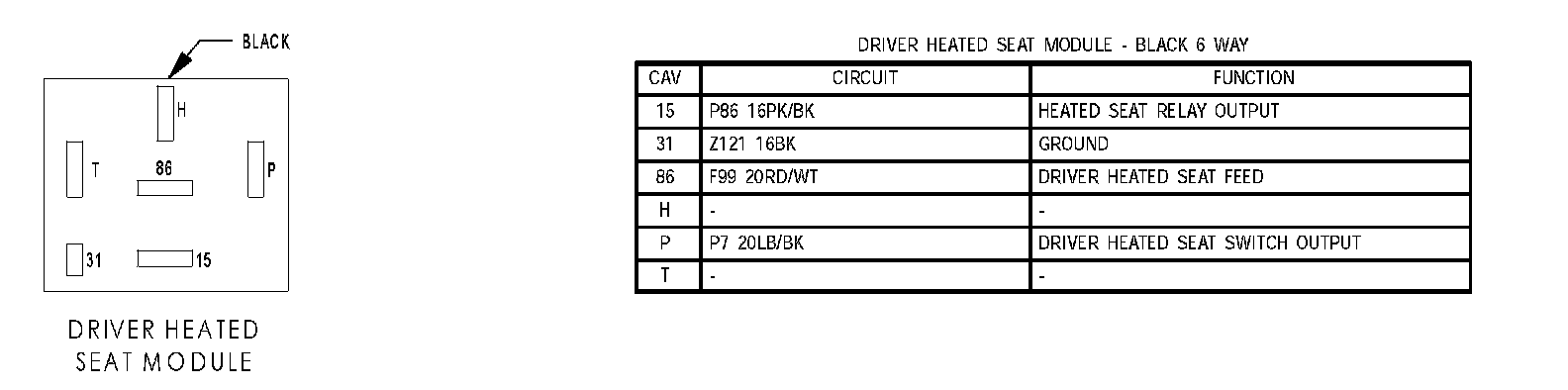

Driver Heated Seat Module:

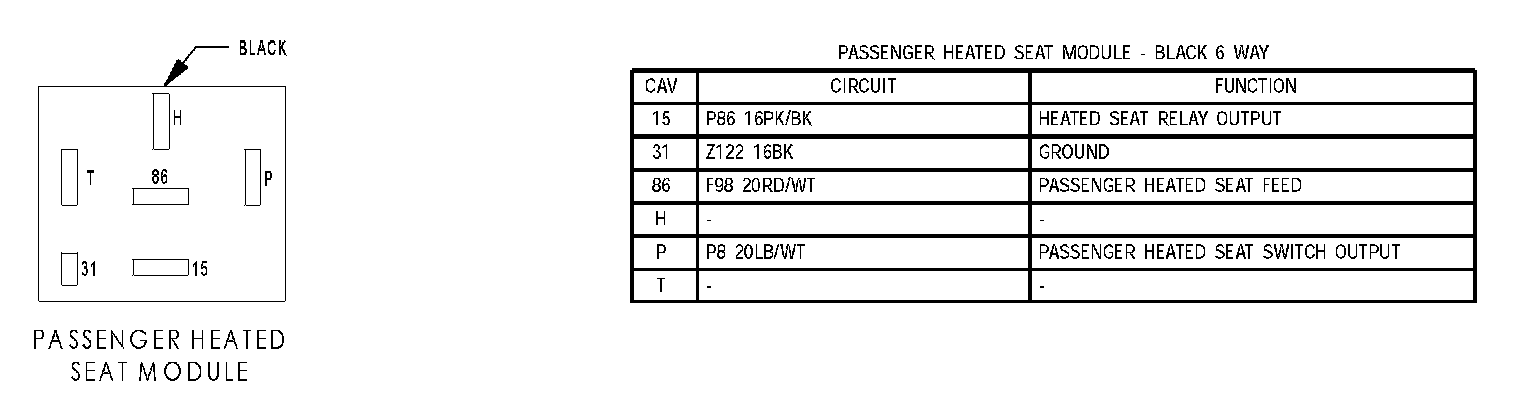

Passenger Heated Seat Module:
