Vehicle Speed Sensor/Transducer - Cruise Control
Vehicle Speed Sensor/Transducer - Cruise Control

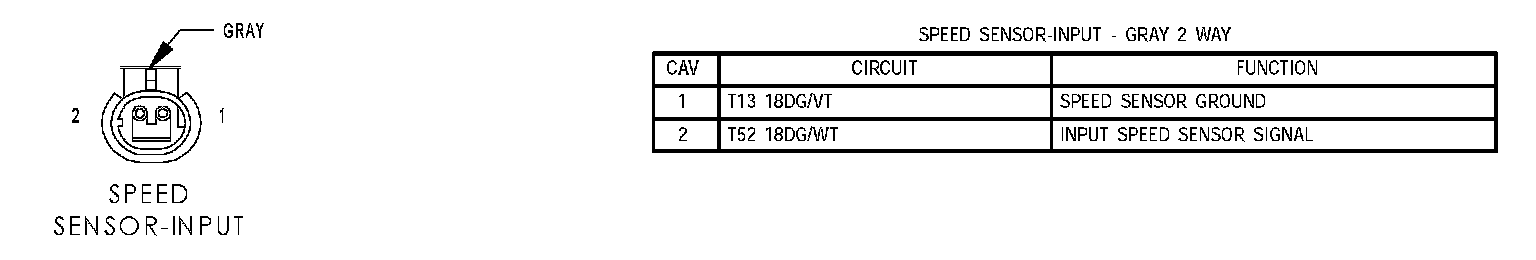

Speed Sensor Input:

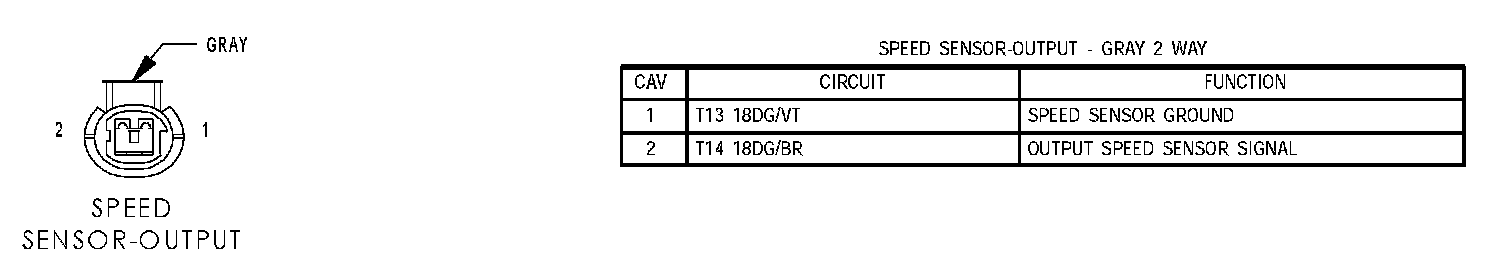

Speed Sensor Output:
