Home
>>
Chrysler
>>
2004
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC

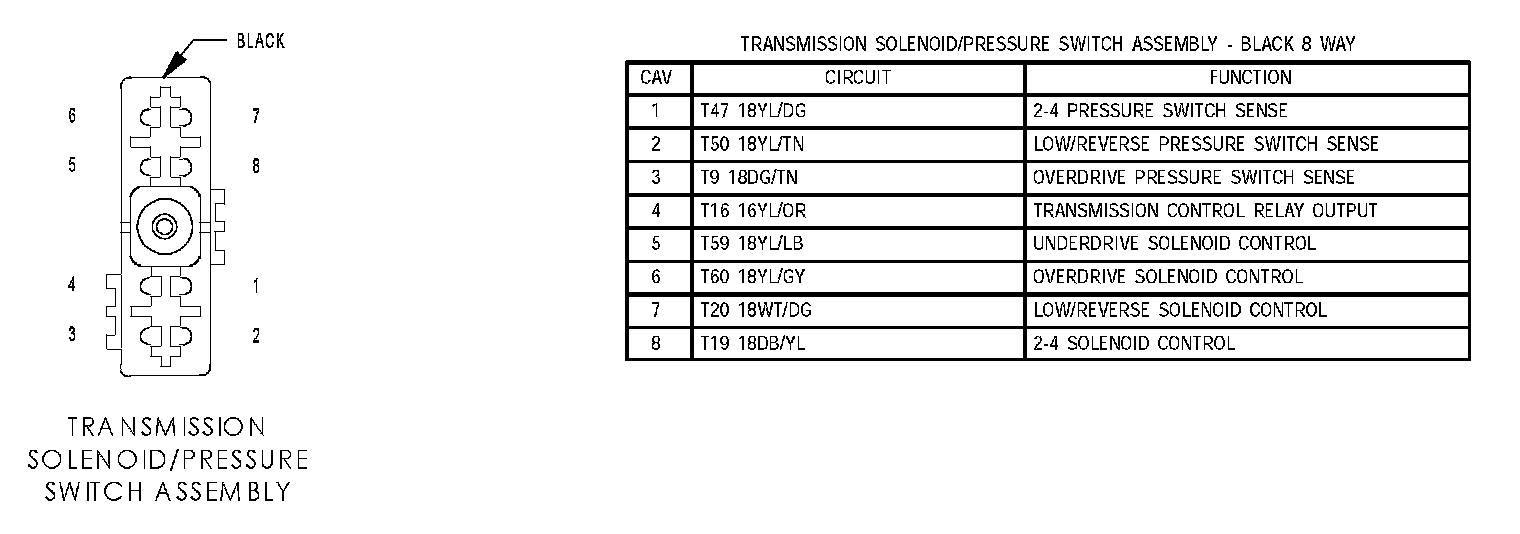

Transmission Solenoid/Pressure Switch Assembly:
