Home
>>
Chrysler
>>
2004
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
Headlamp

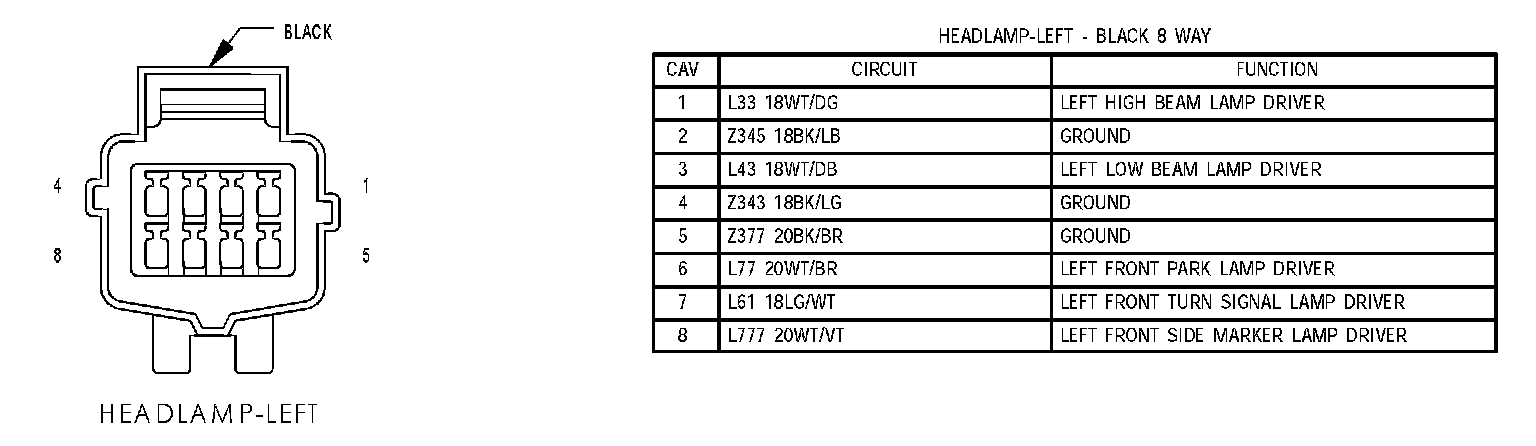

Headlamp Left:

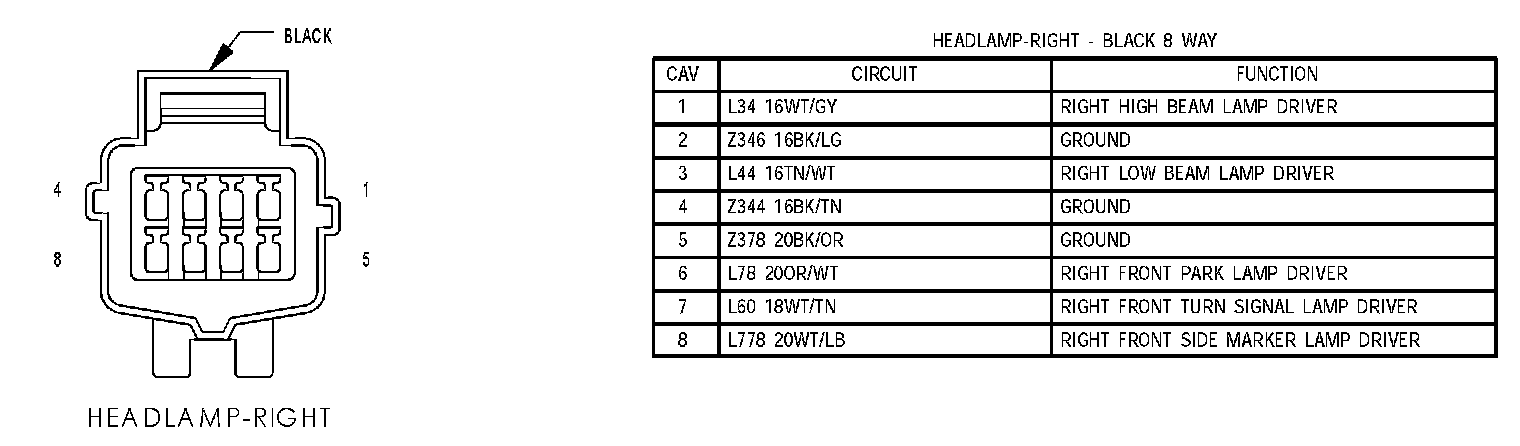

Headlamp Right:
