Intrepid (CANADA) V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
Seat Temperature Element

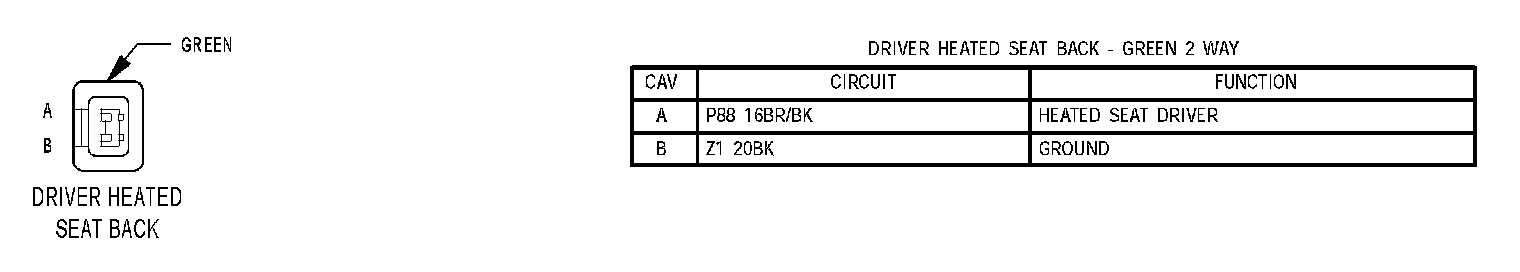

Driver Heated Seat Back:

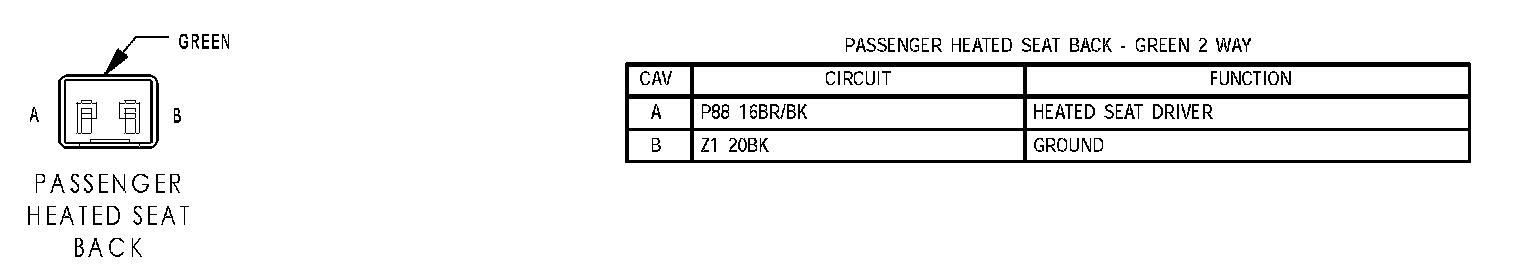

Passenger Heated Seat Back:
