Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Body Control Module
>>
System Schematic
System Schematic

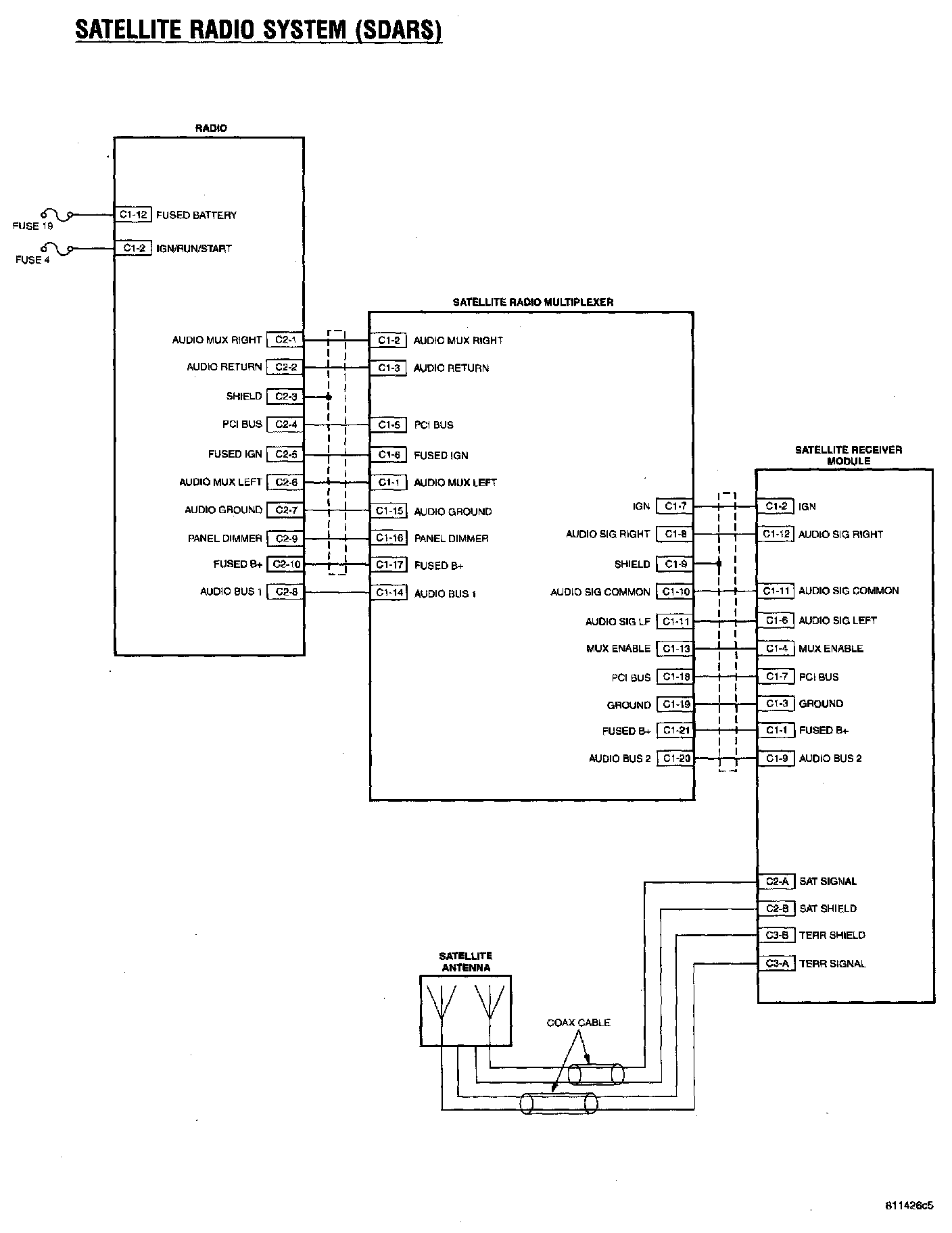

Satellite Radio System (SDARS):
