Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
Power Seat Control Module

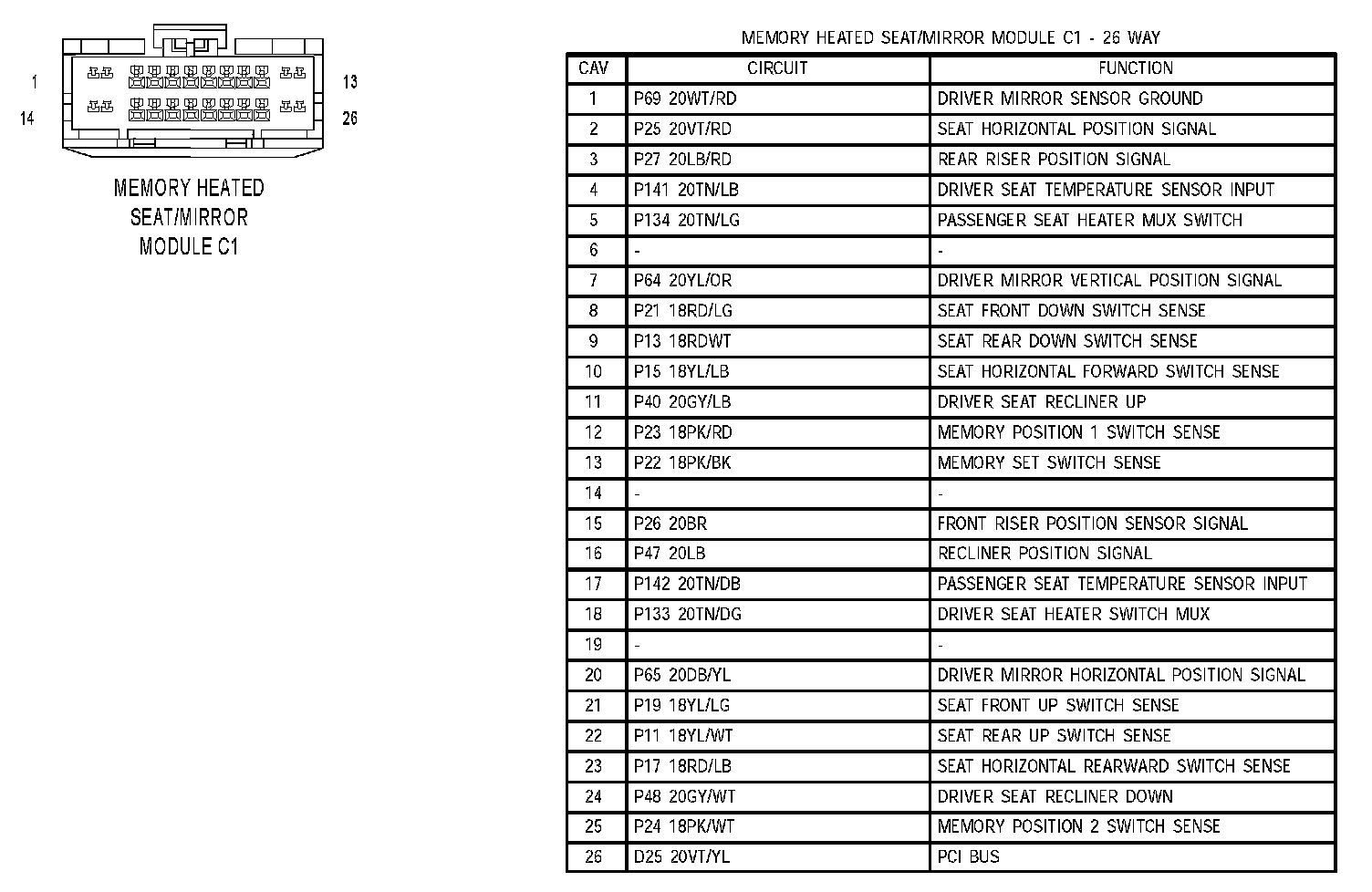

Memory Heated Seat Mirror Module C1:

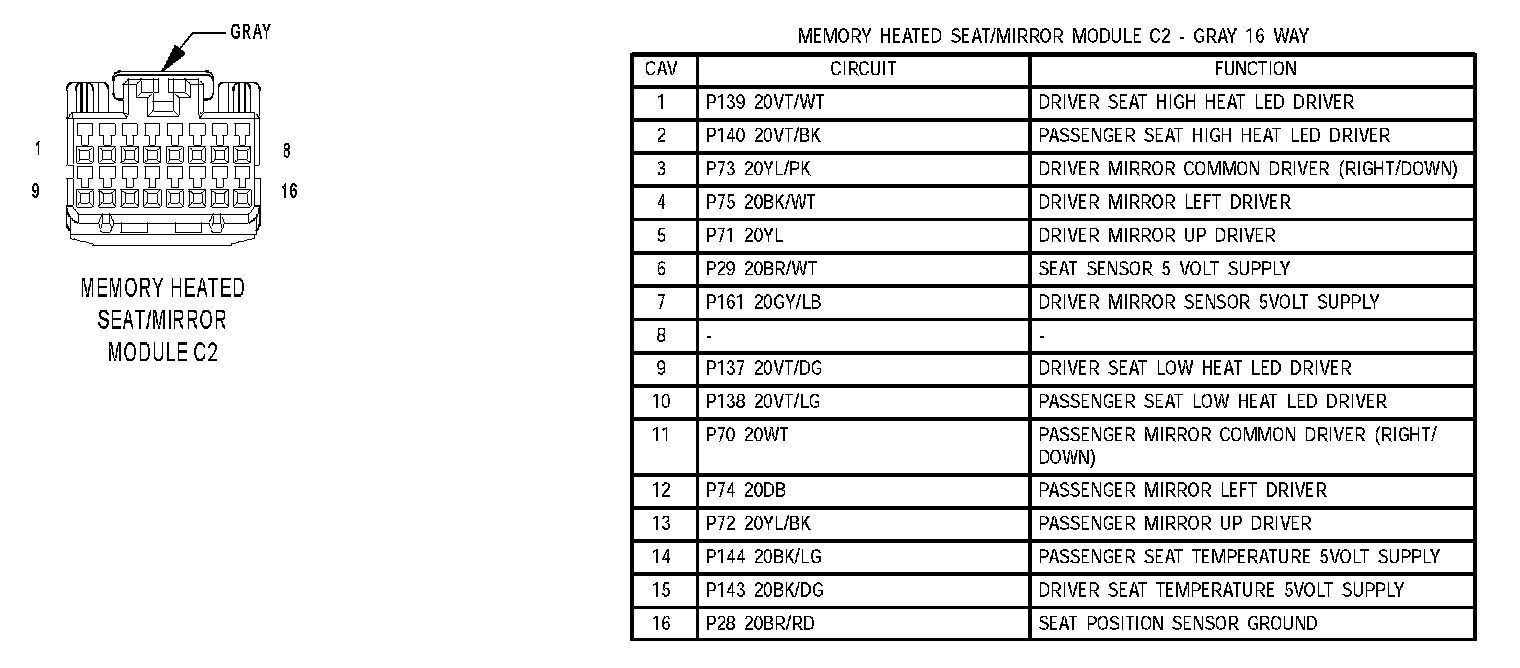

Memory Heated Seat Mirror Module C2:

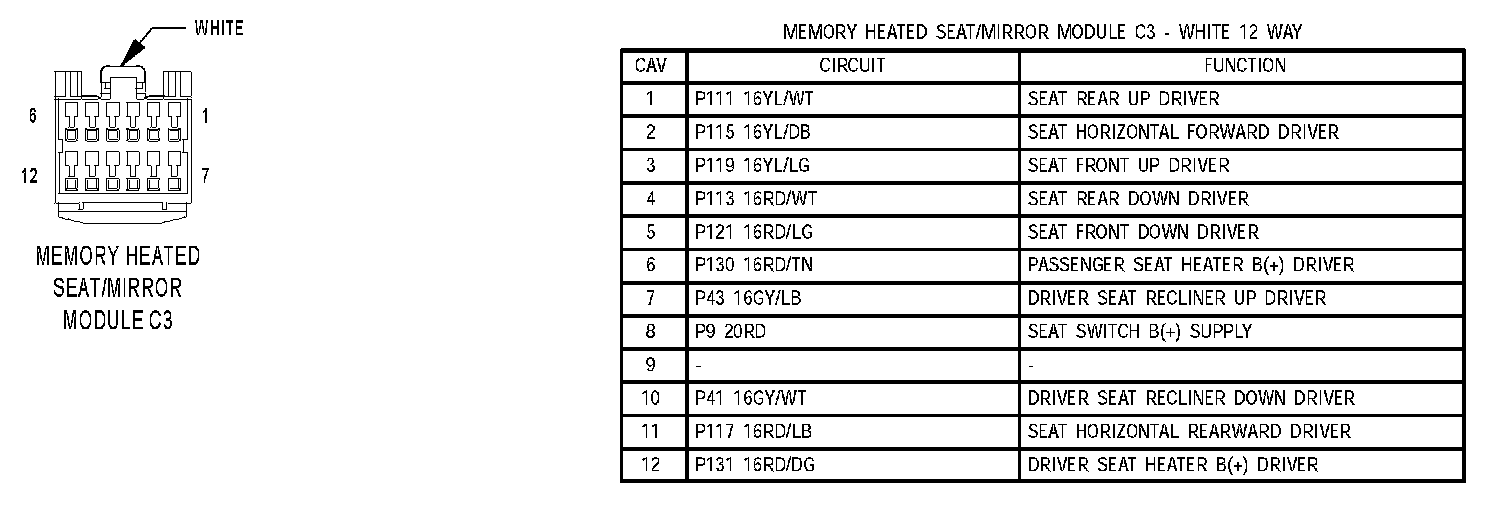

Memory Heated Seat Mirror Module C3:

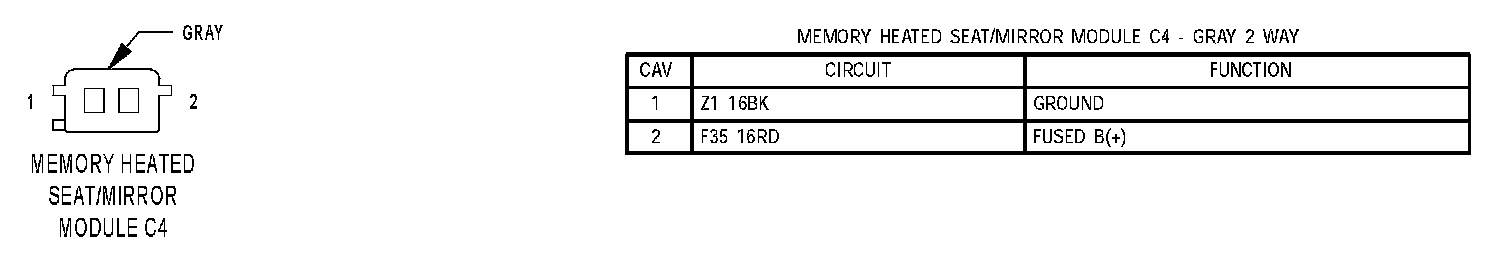

Memory Heated Seat Mirror Module C4:
