Home
>>
Chrysler
>>
2003
>>
Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

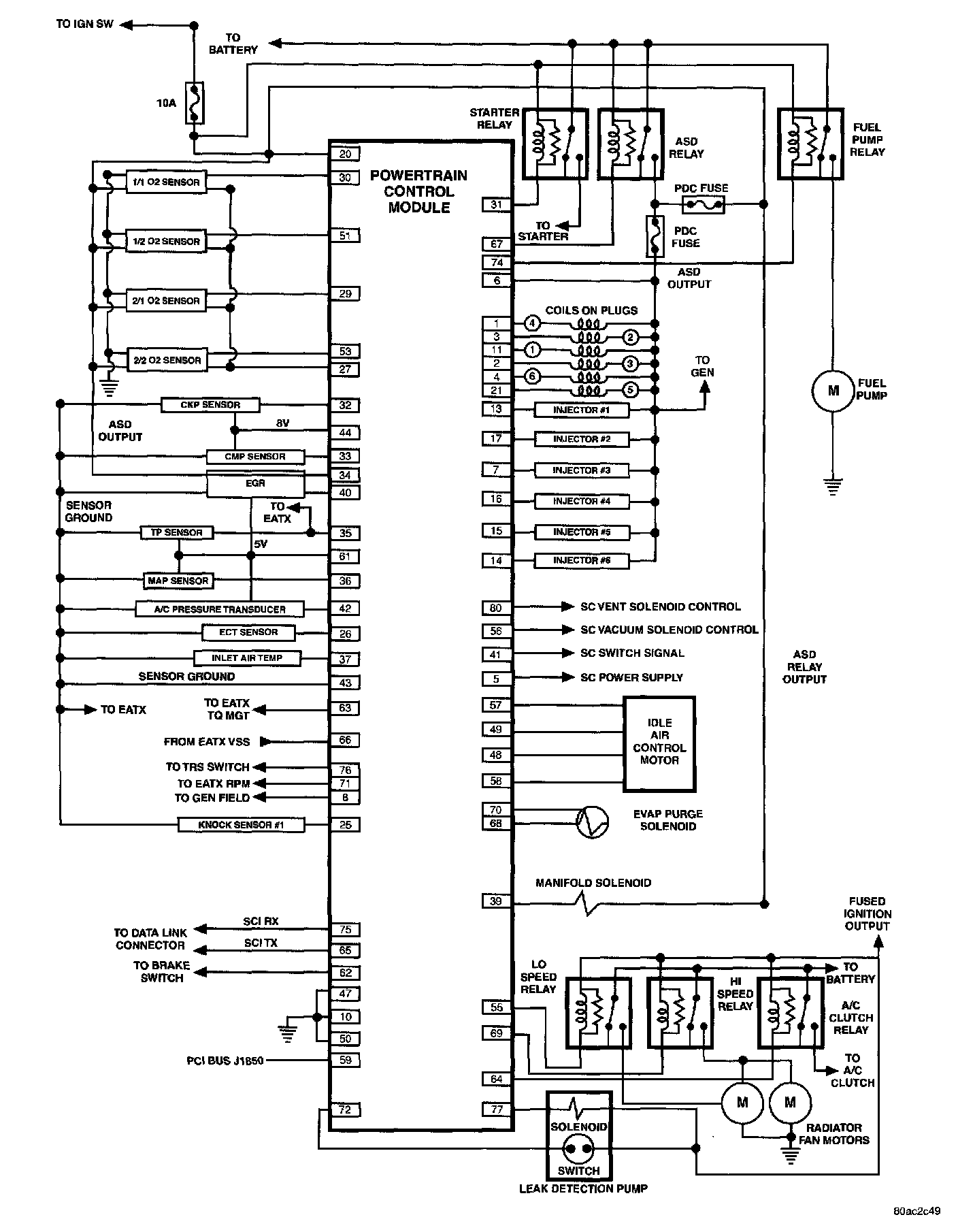

2003 JR 2.7L SBEC:
