Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2003
>>
Intrepid (CANADA) V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
Seat Temperature Element

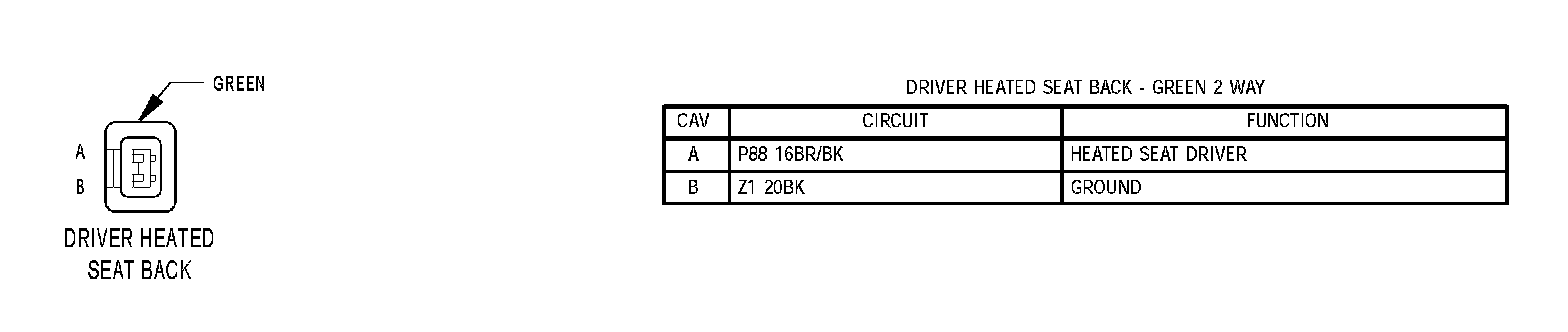

Driver Heated Seat Back:

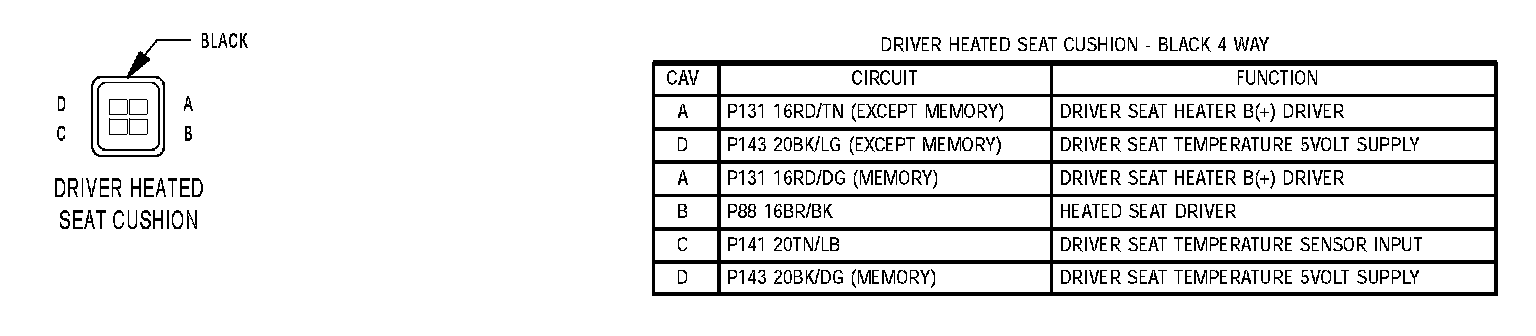

Driver Heated Seat Cushion:
