Chrysler
>>
2003
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators

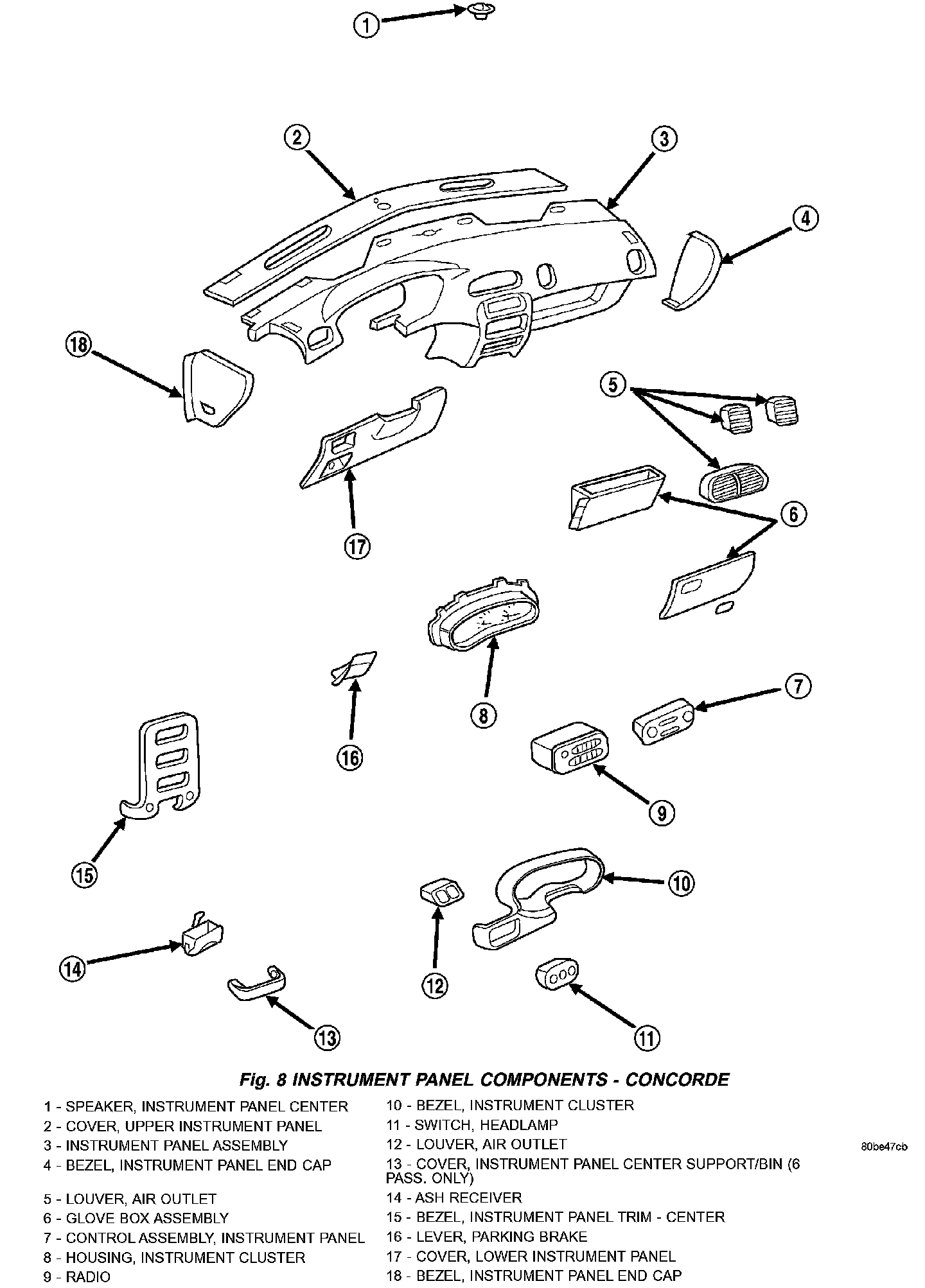

Fig.8 Instrument Panel Components - Concorde:
