Sebring Sedan V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
System Schematic
System Schematic

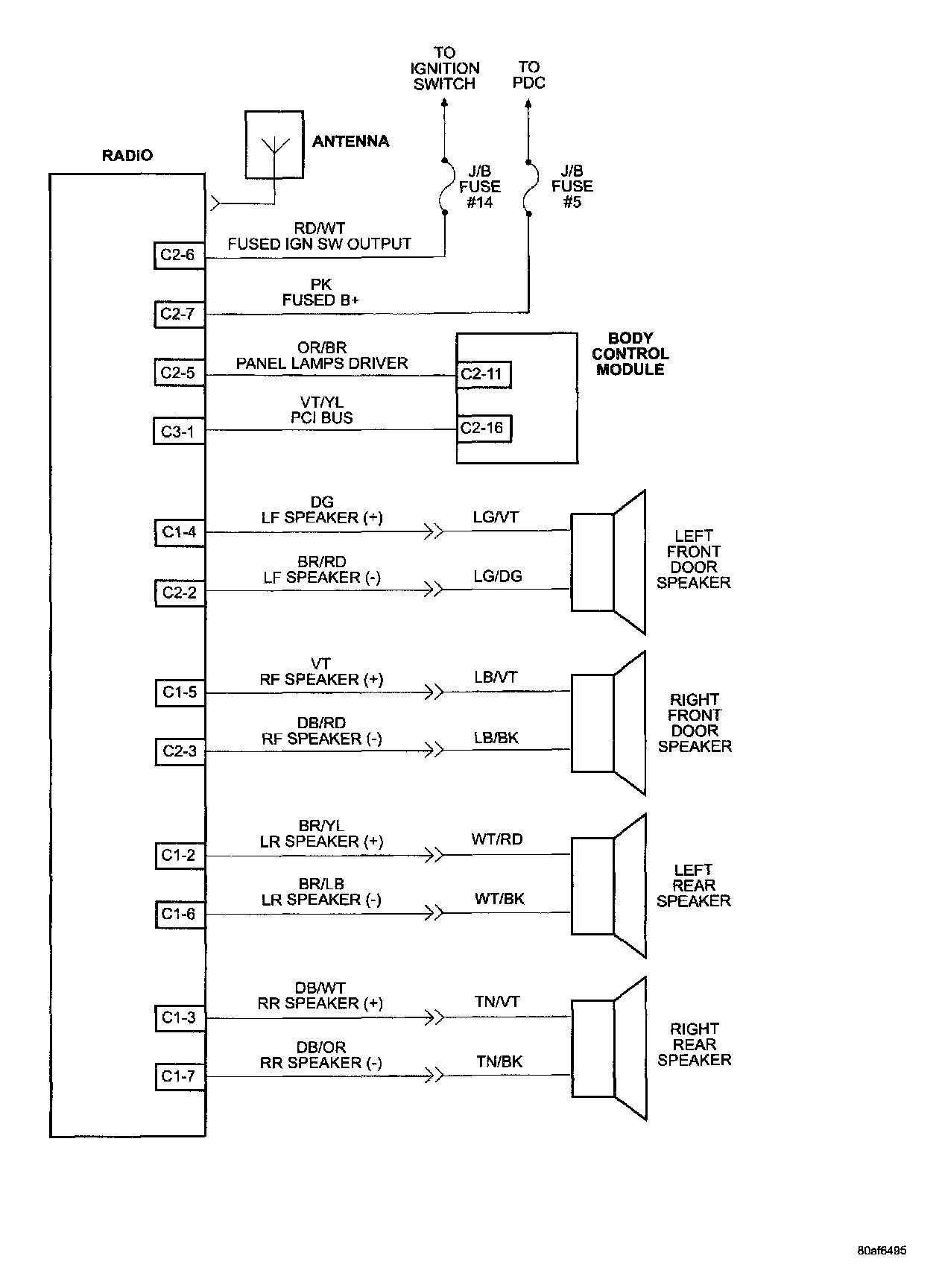

Base Radio:

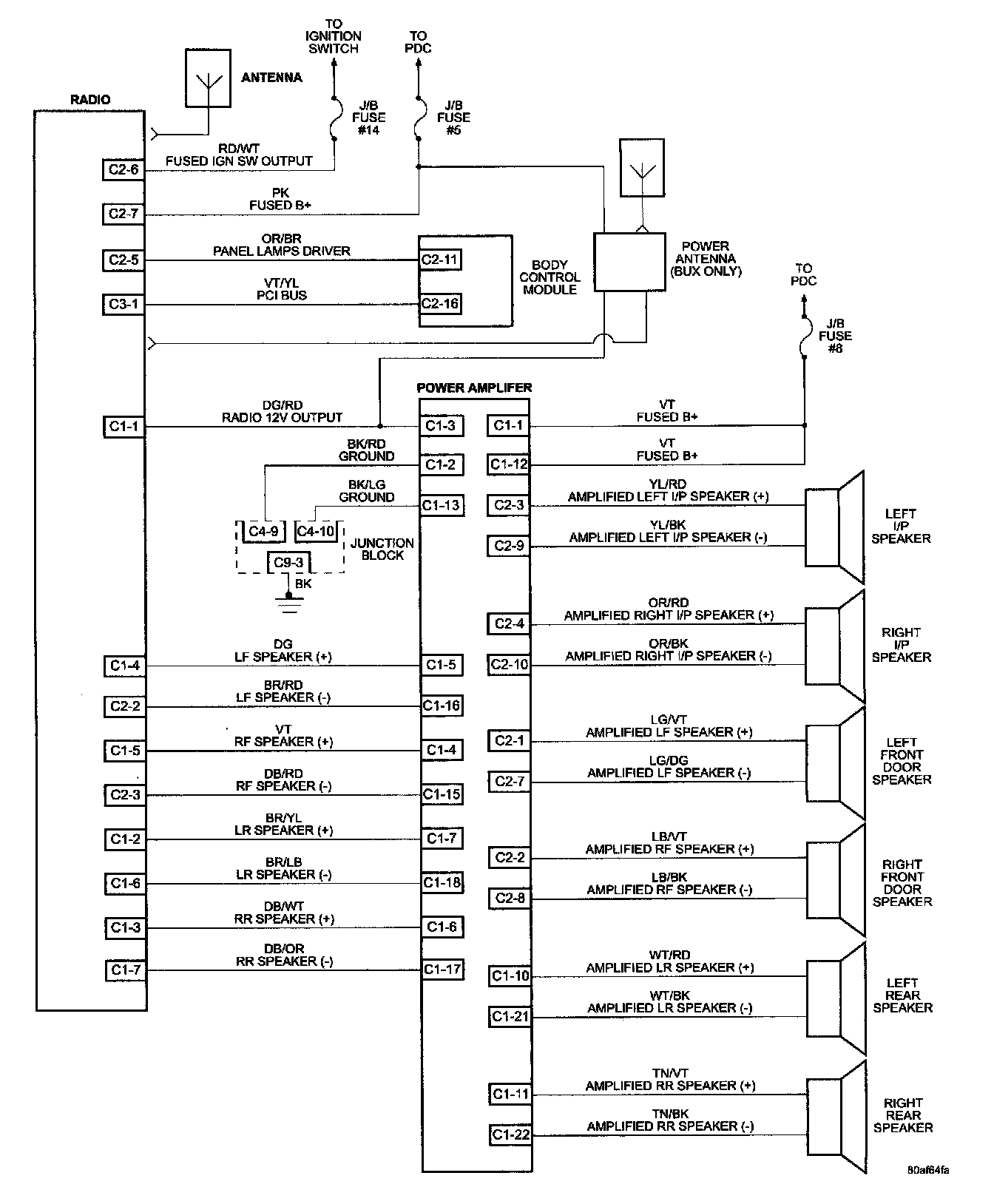

Premium System:
