Home
>>
Chrysler
>>
2001
>>
Sebring Sedan L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

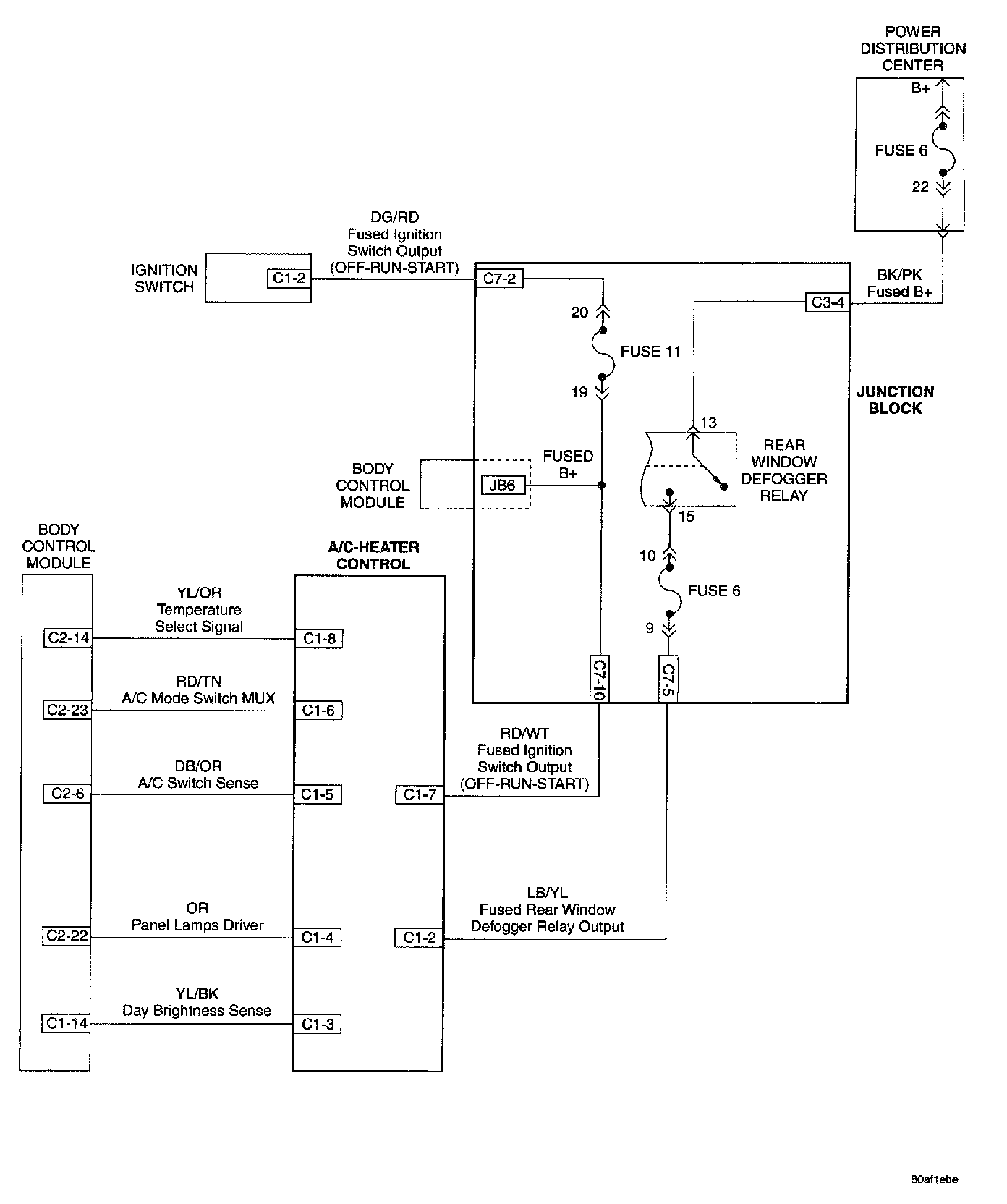

A/C Heater Control:
