Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2001
>>
Sebring Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

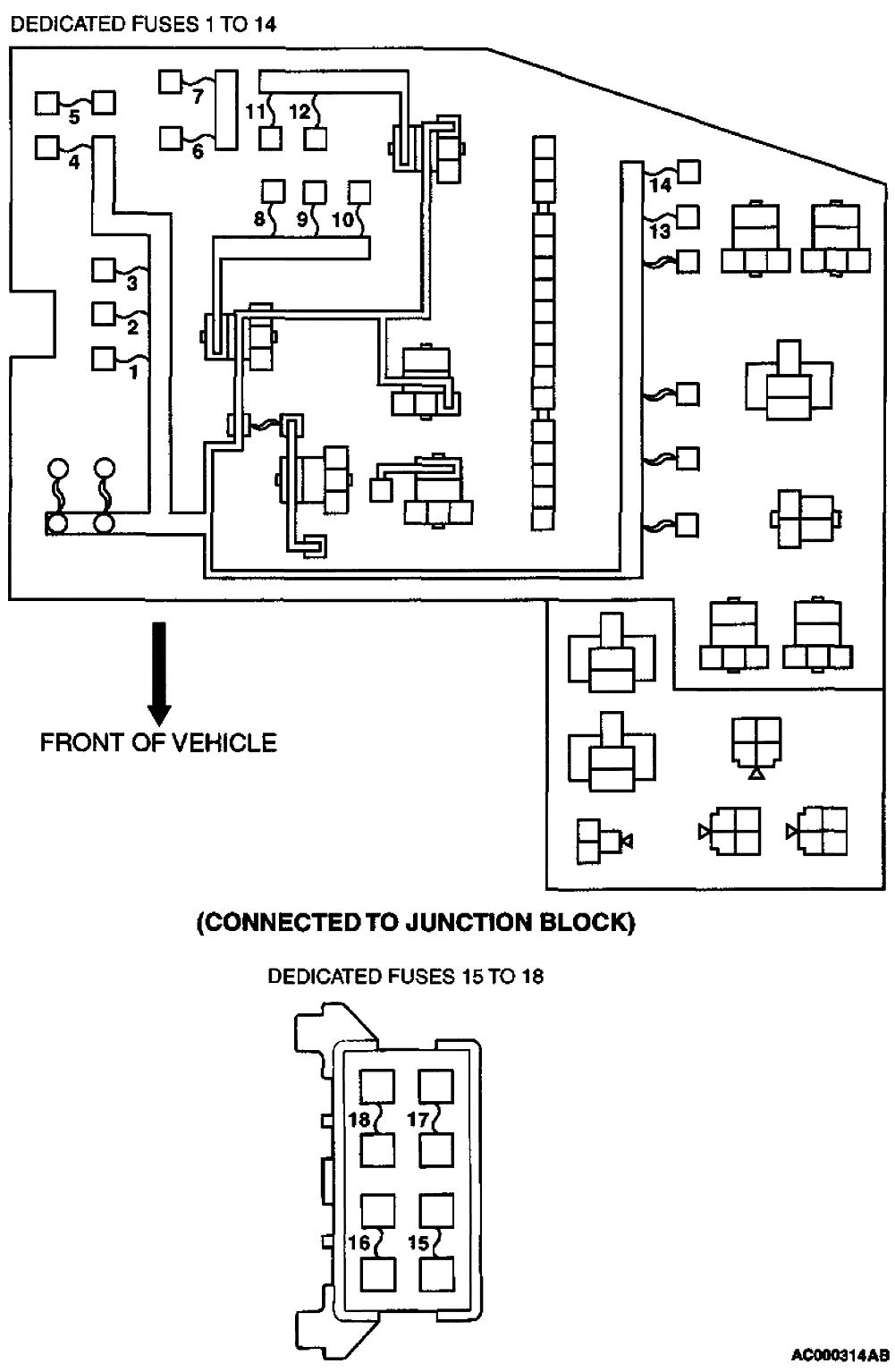

Centralized Junction
Centralized Junction
Relay Location

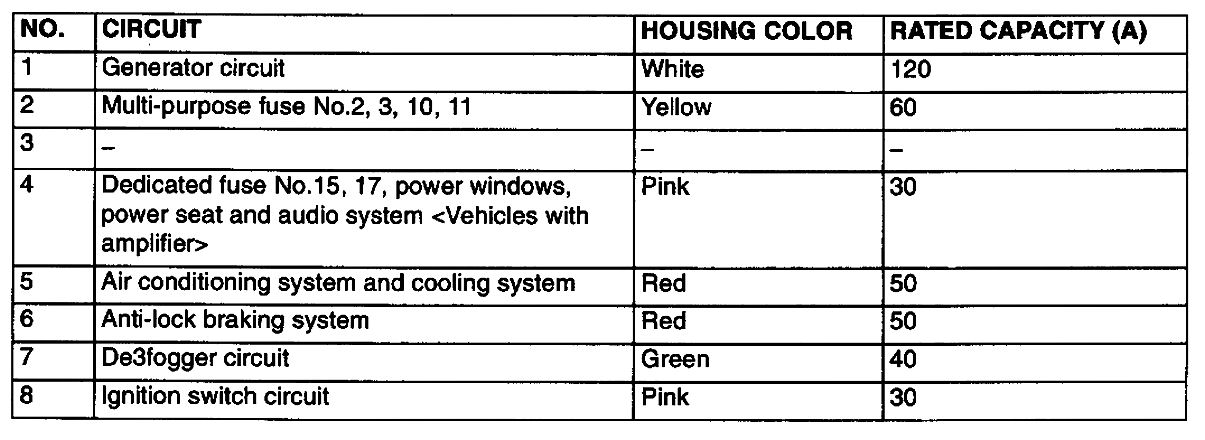

Fusible Link

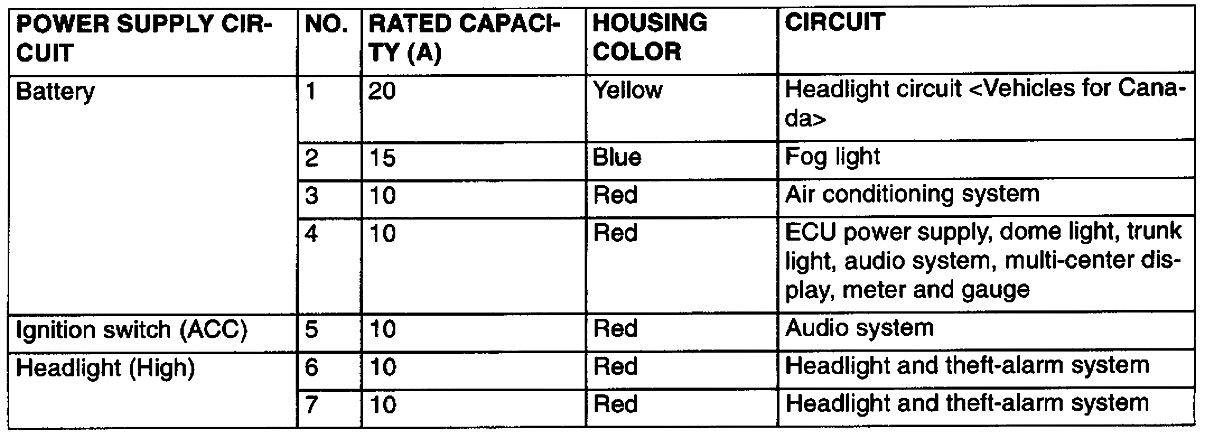

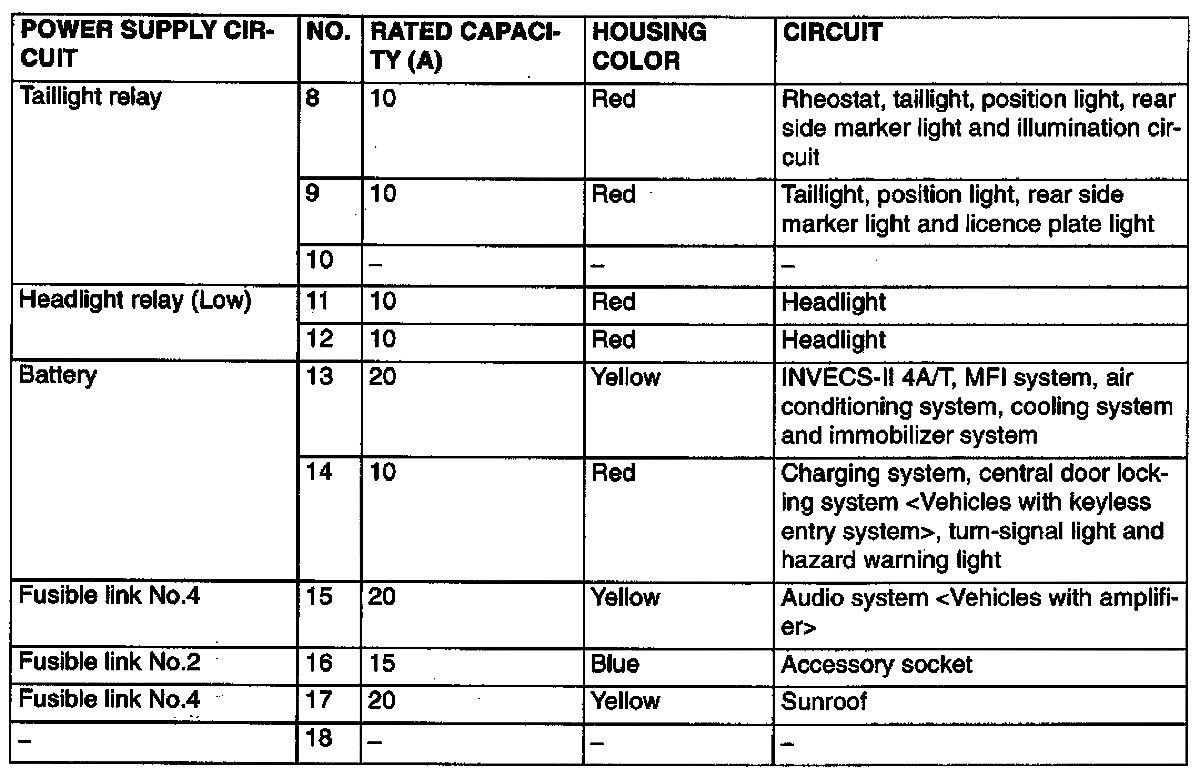

Dedicated Fuse
