Fuel Pump Relay: Testing and Inspection

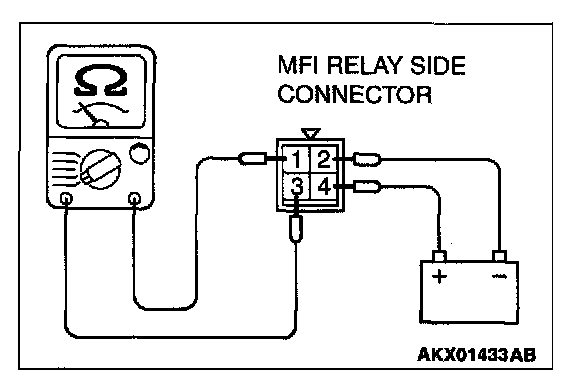

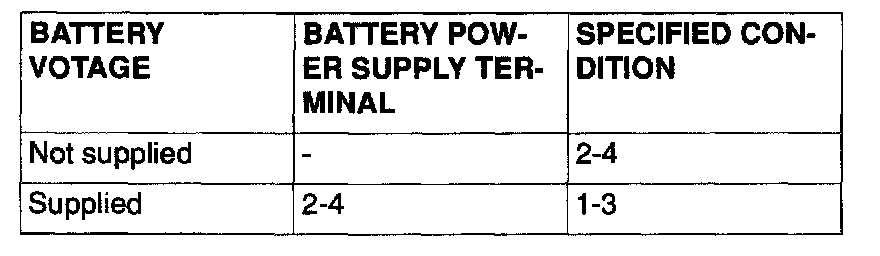

MFI/Fuel Pump Relay Continuity Check:
MFI/Fuel Pump Relay Continuity Check:
