How to Read Circuit Diagrams
>>

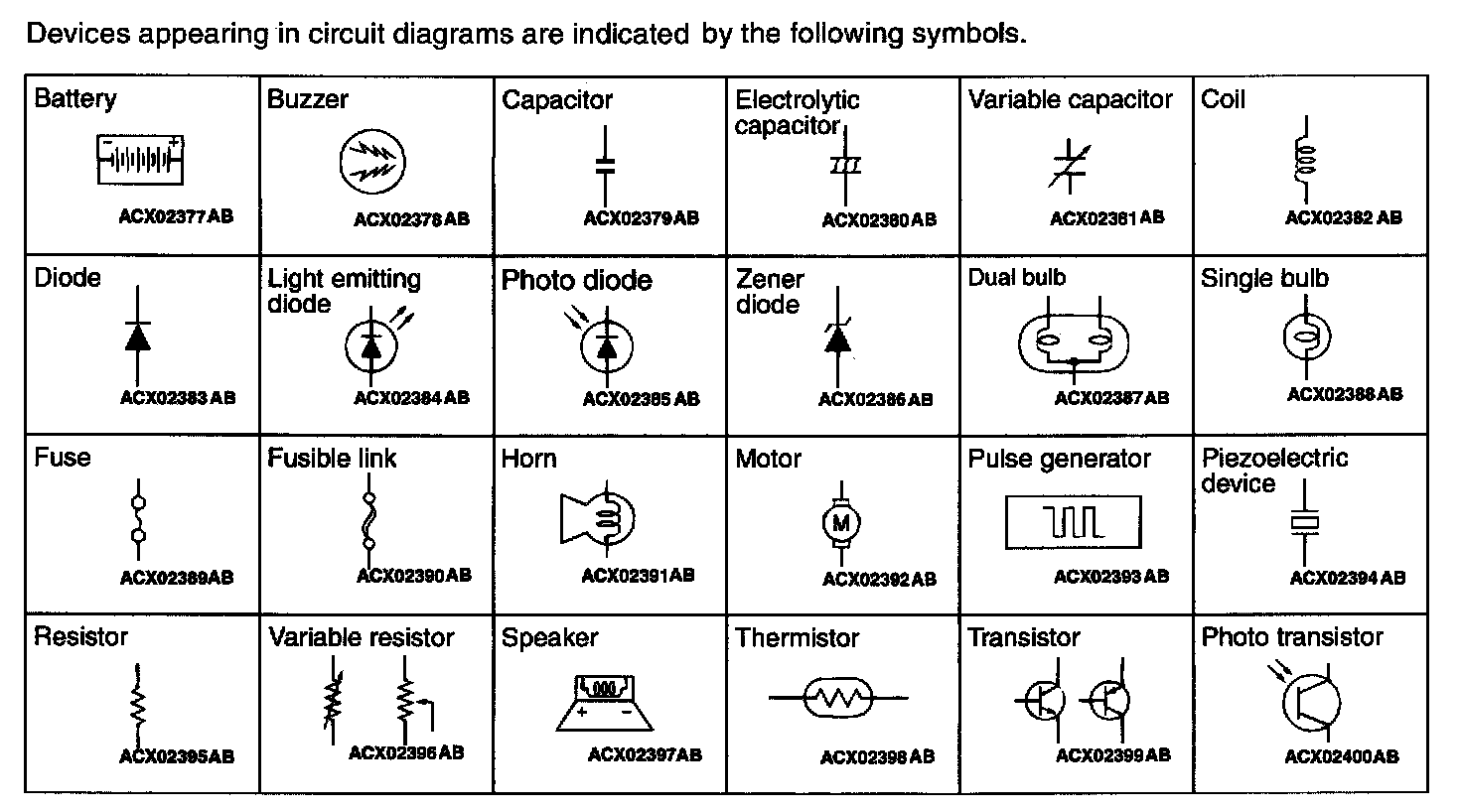

Symbols (Except Connector and Grounding)
Symbols (Except Connector and Grounding)
Symbols (Except Connector And Grounding):
