Radiator Fan and Condenser Drive Circuit
Radiator Fan and Condenser Drive Circuit

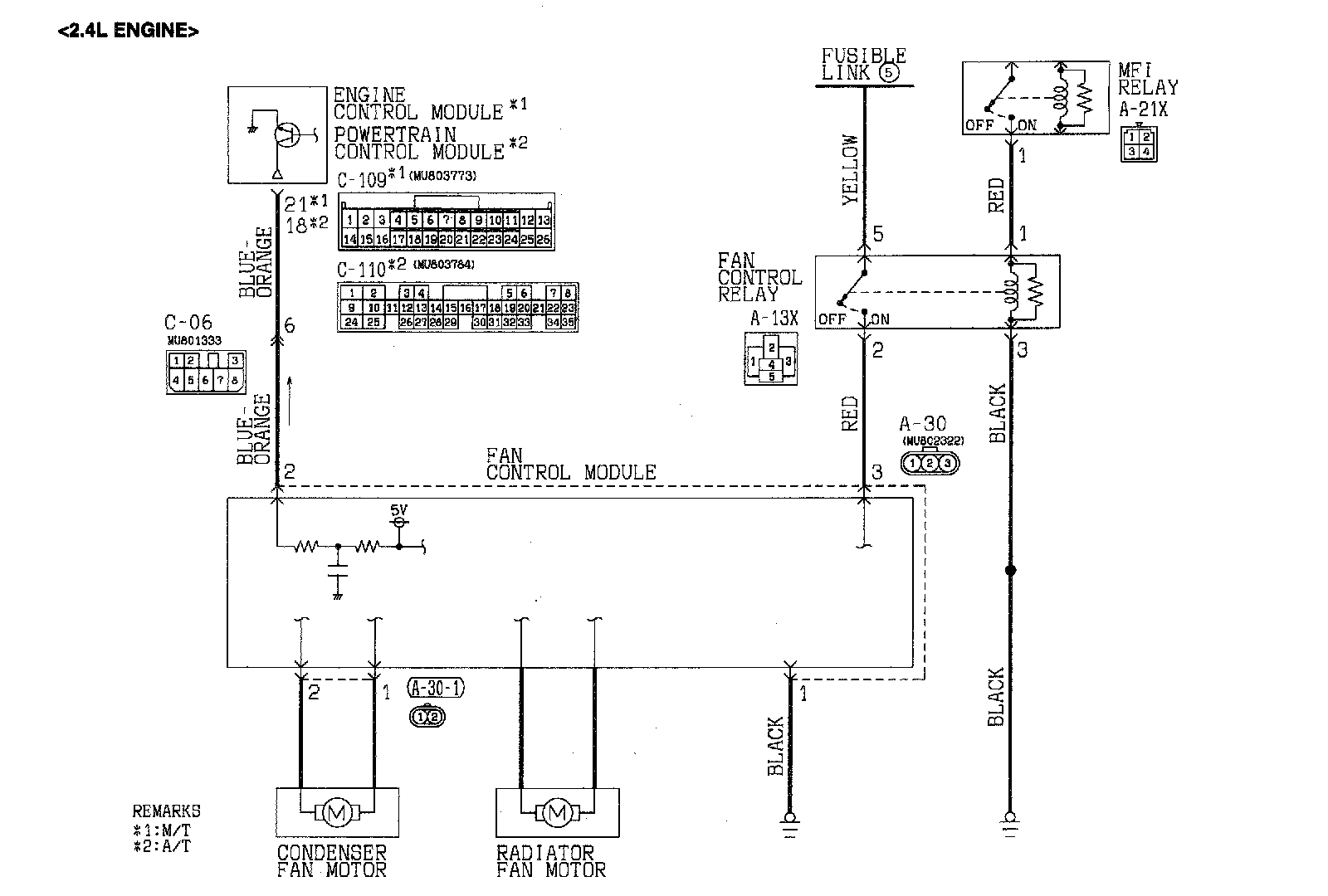

Radiator Fan and Condenser Drive Circuit 2.4L
