Chrysler
>>
2001
>>
Sebring Convertible V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Headlamp
>>
System Diagram
System Diagram

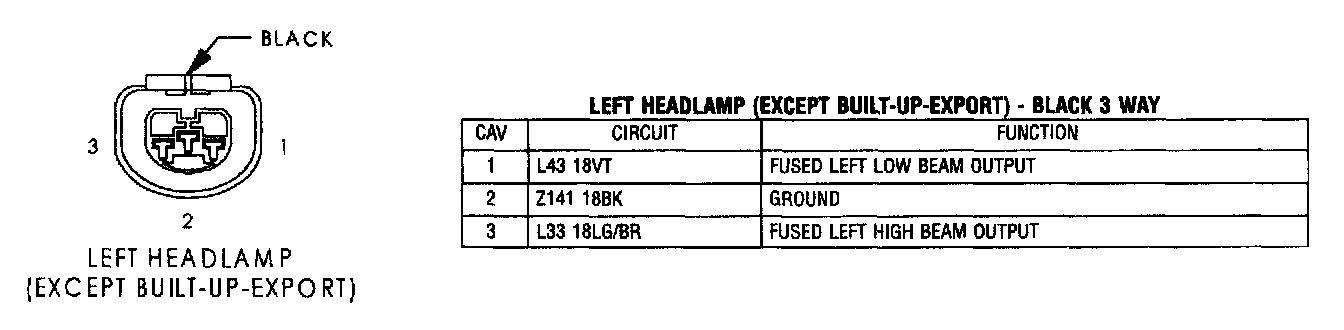

Left Headlamp (Except Built-up Export):

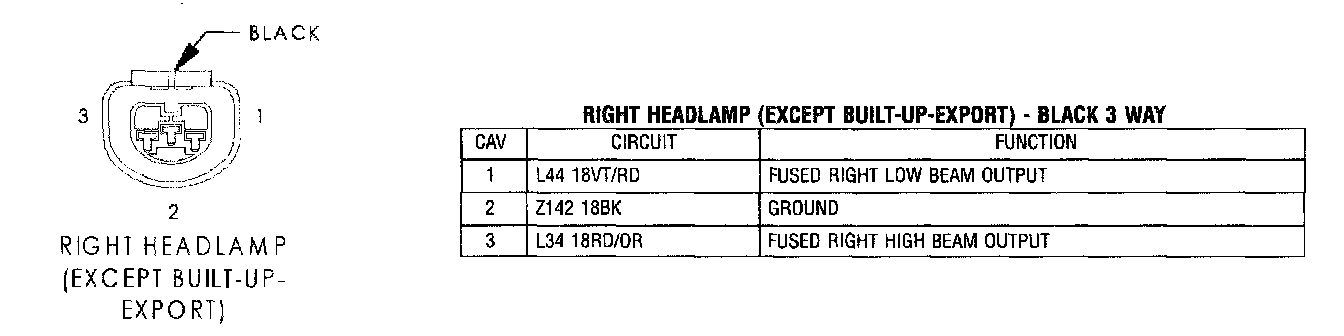

Right Headlamp (Except Built-up Export):
