Home >> Chrysler >> 2001 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams

Control Assembly: Diagrams

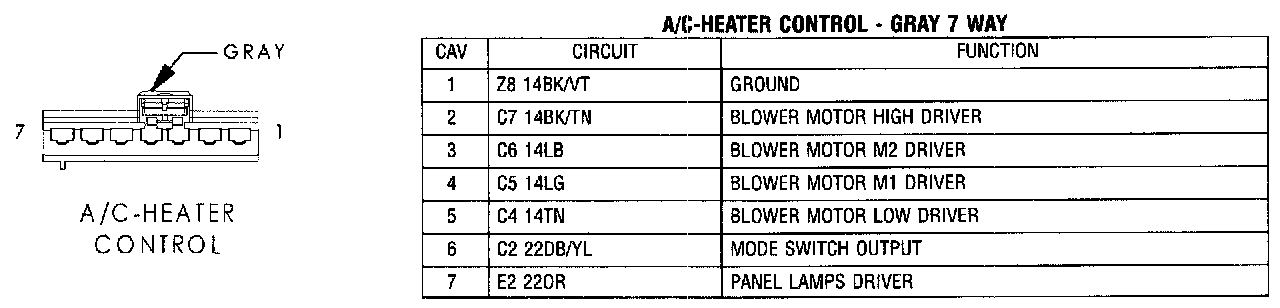

A/C - Heater Control:
