Chrysler
>>
2001
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 4
Figure 4

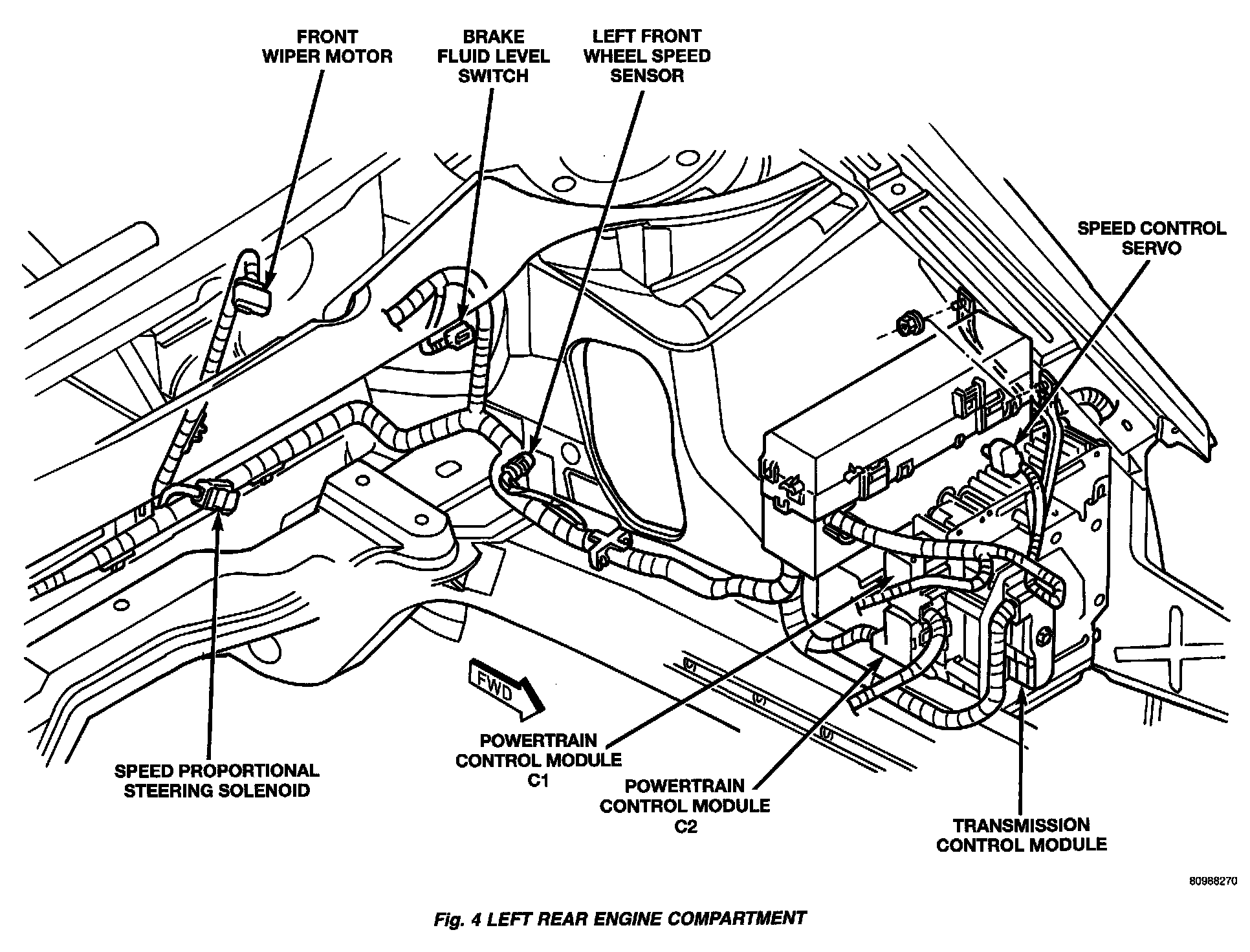

Fig.4 Left Rear Engine Compartment:
