Chrysler
>>
2001
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Figure 11
Figure 11

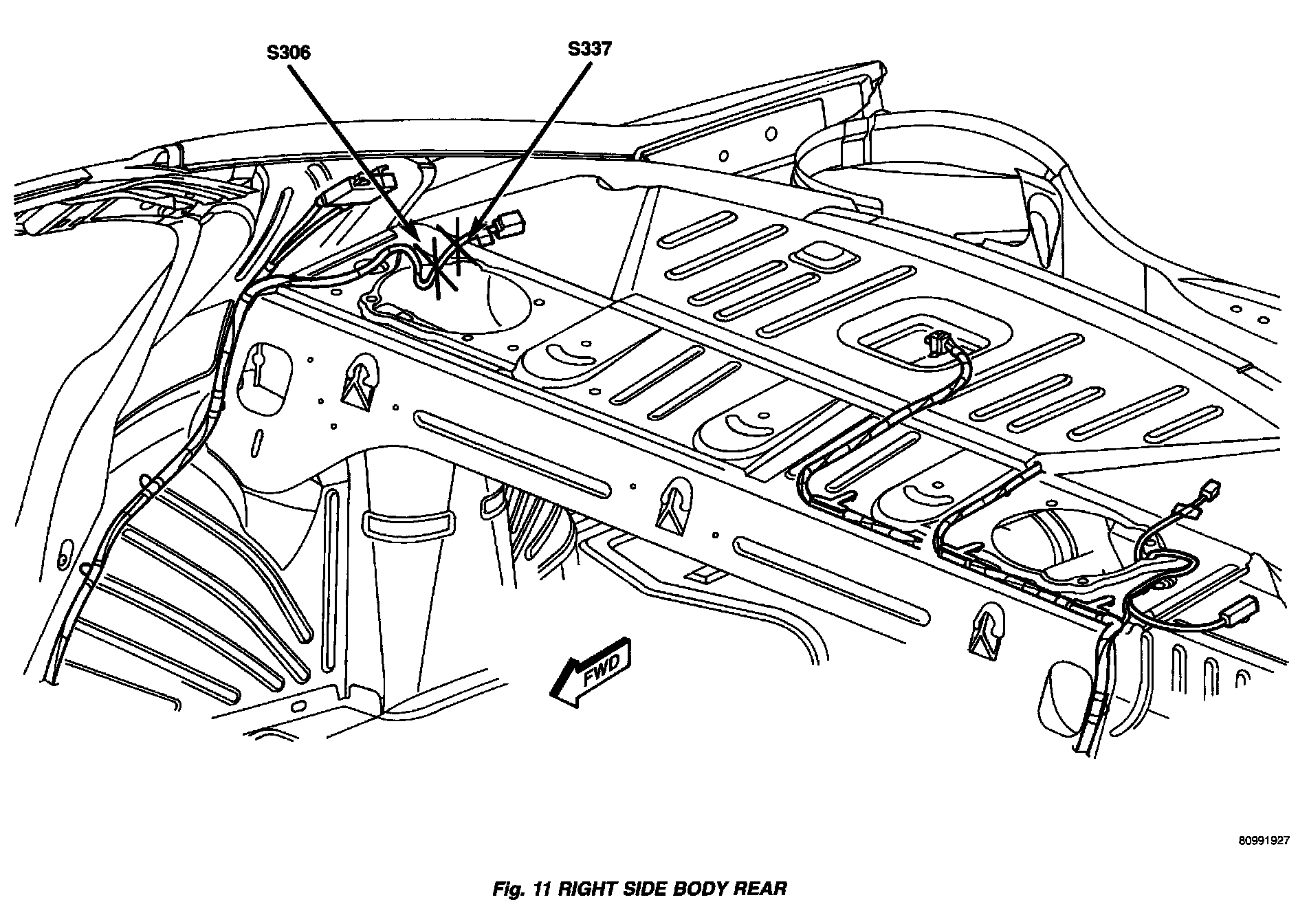

Fig.11 Right Side Body Rear:
