Manifold Pressure/Vacuum Sensor
Manifold Pressure/Vacuum Sensor

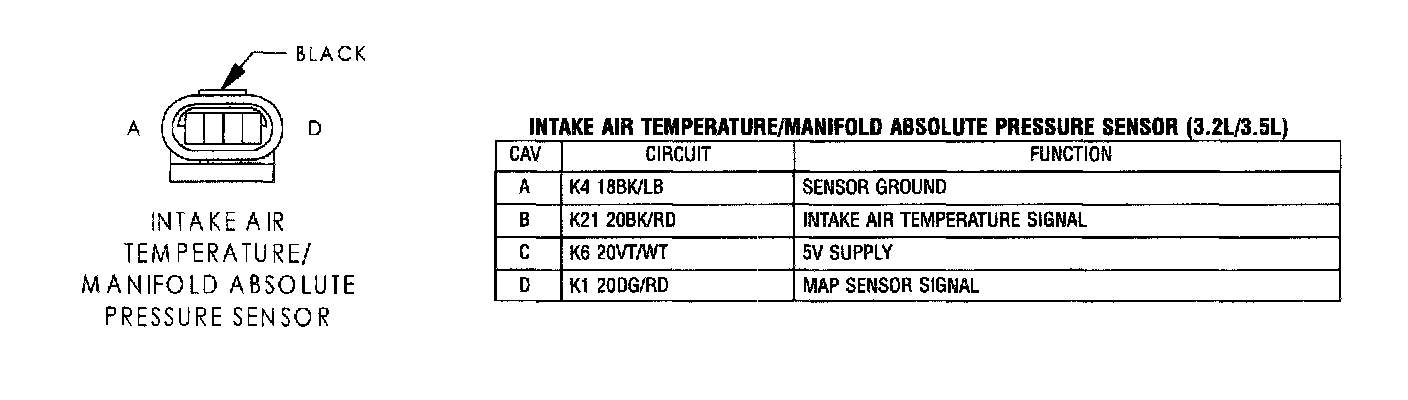

Intake Air Temperature / Manifold Absolute Pressure Sensor:
