Chrysler
>>
2001
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Valve Body, A/T
Valve Body, A/T

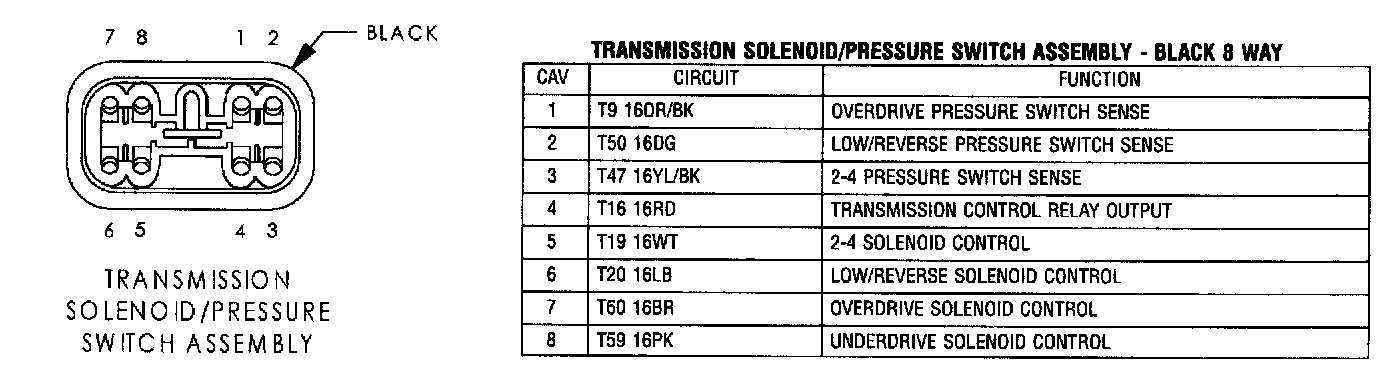

TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY
