Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators

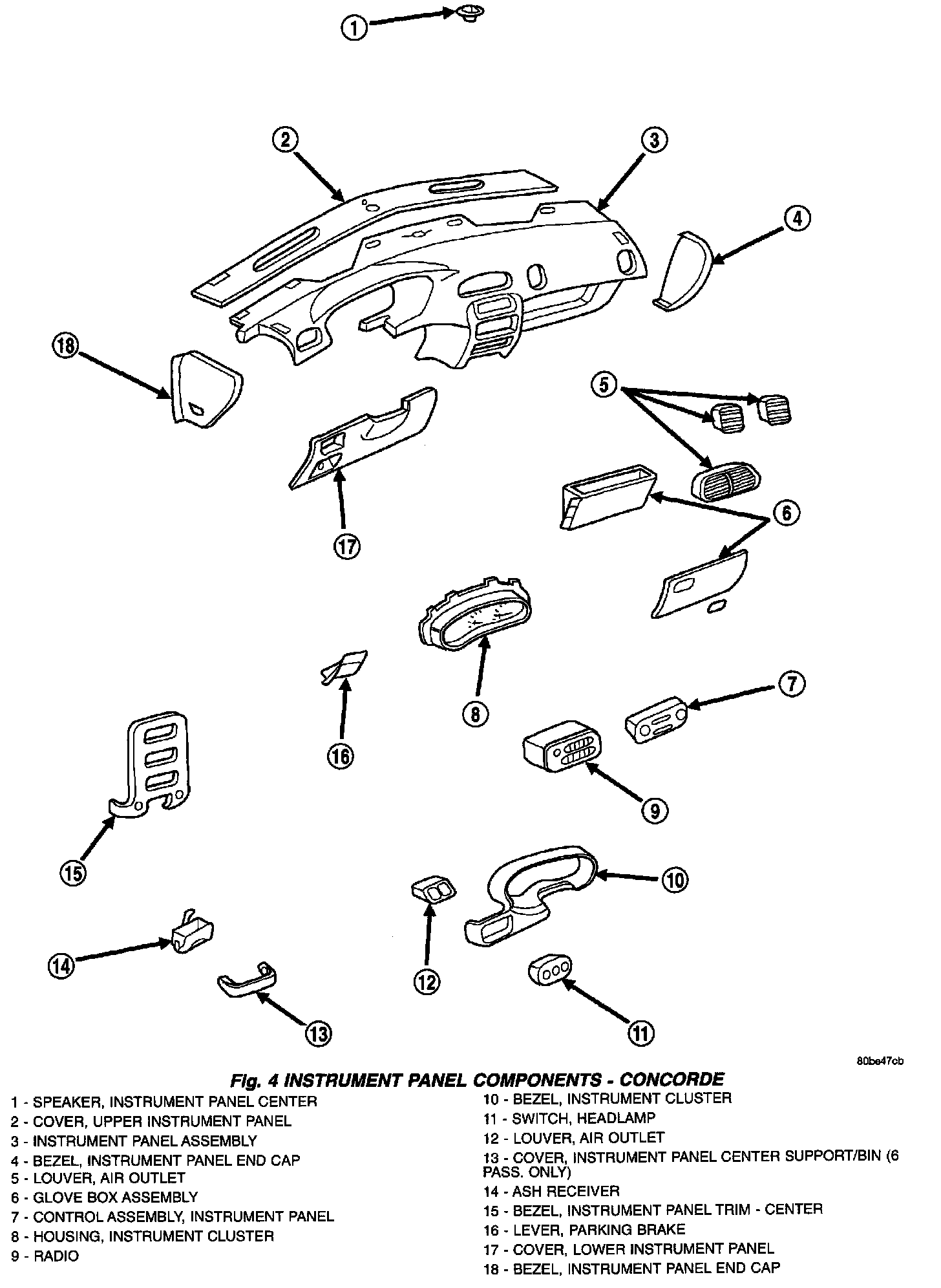

Fig. 4 Instrument Panel Components - Concorde:
