Amplifier: Locations

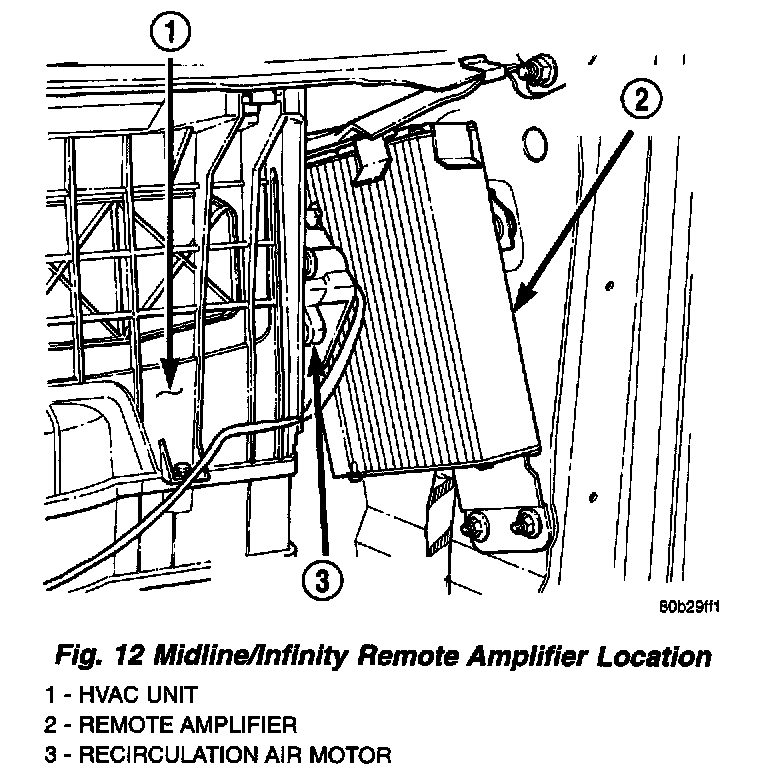

Fig.12 Midline/Infinity Remote Amplifier Location:

Midline And Infinity amplifier is located in the right front Cowl panel.

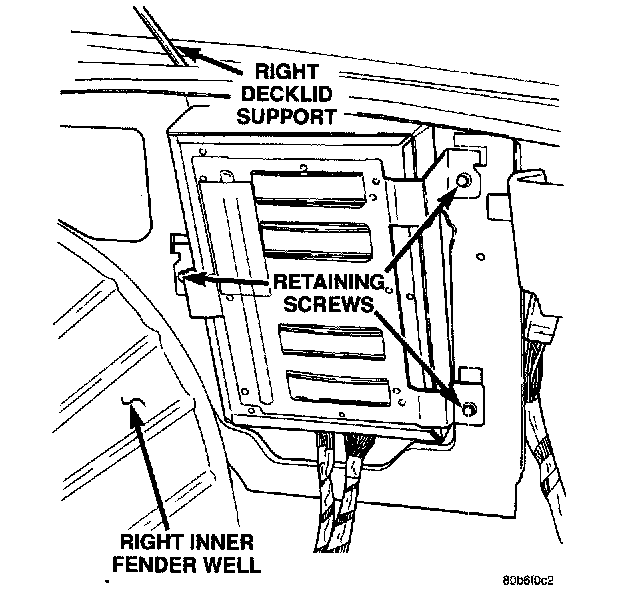

Infinity II amplifier is located beneath the trunk liner covering the right quarter inner panel.
