Home
>>
Chrysler
>>
2000
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

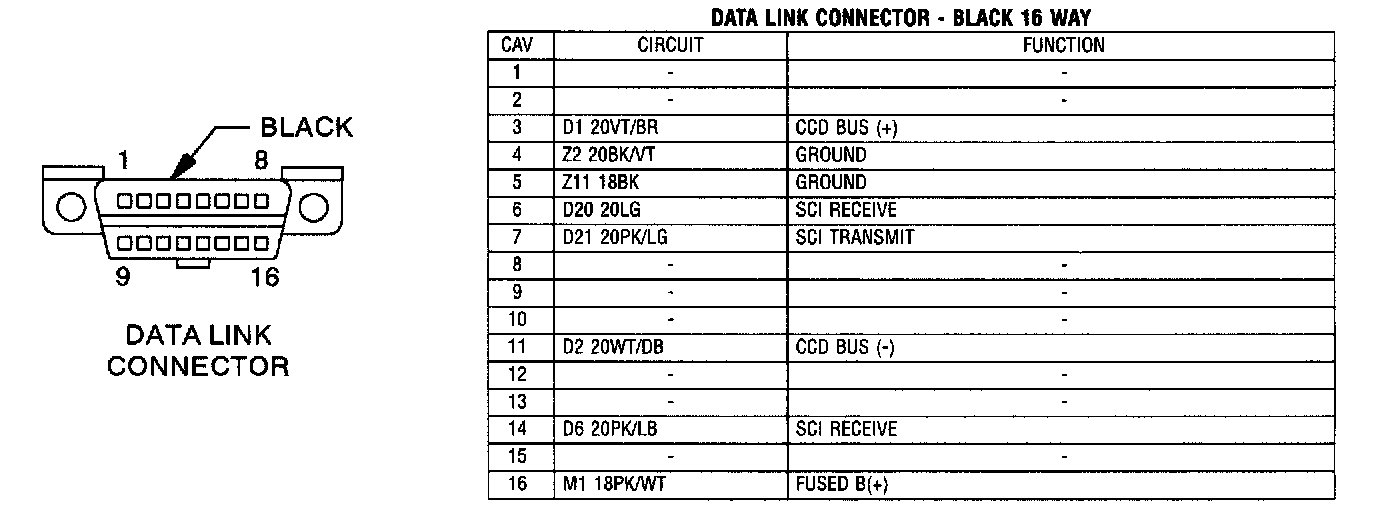

Data Link Connector-Black 16 Way:
