Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Compass >> System Schematic

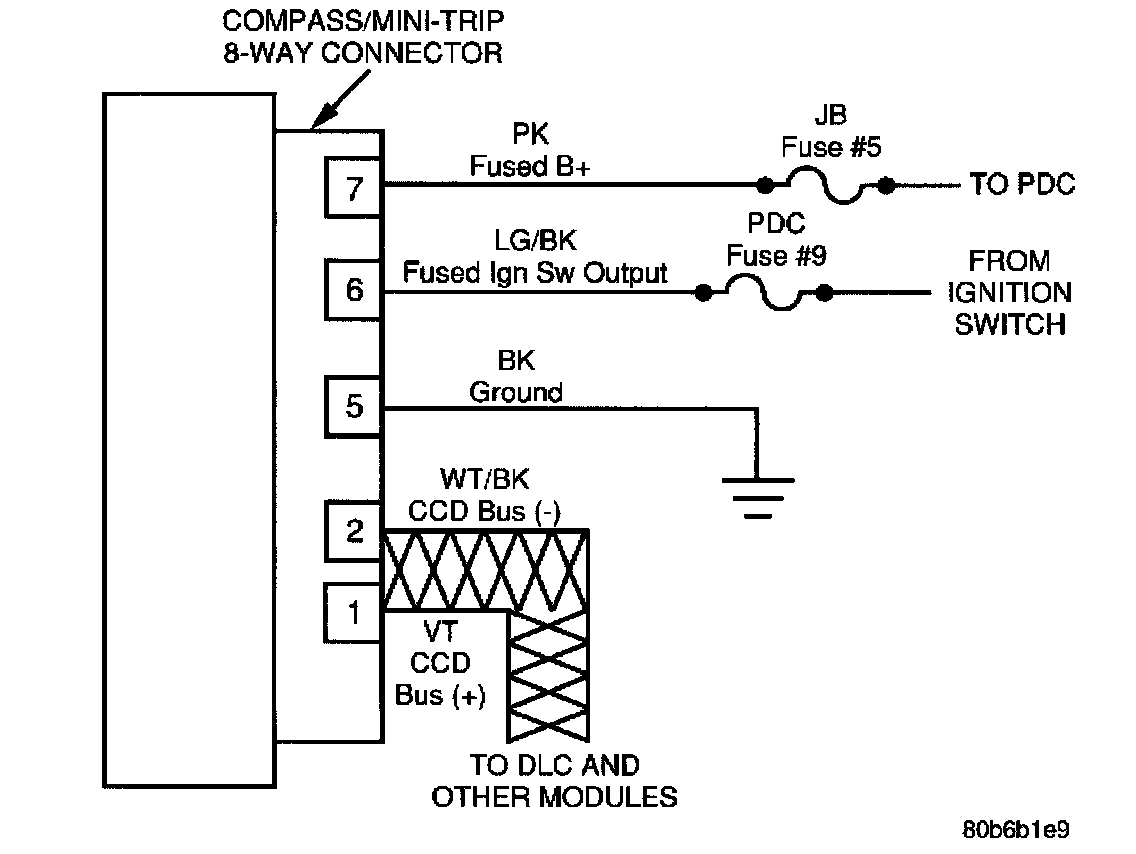

System Schematic

Compass/Mini-Trip:
