Sebring Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse
Fuse

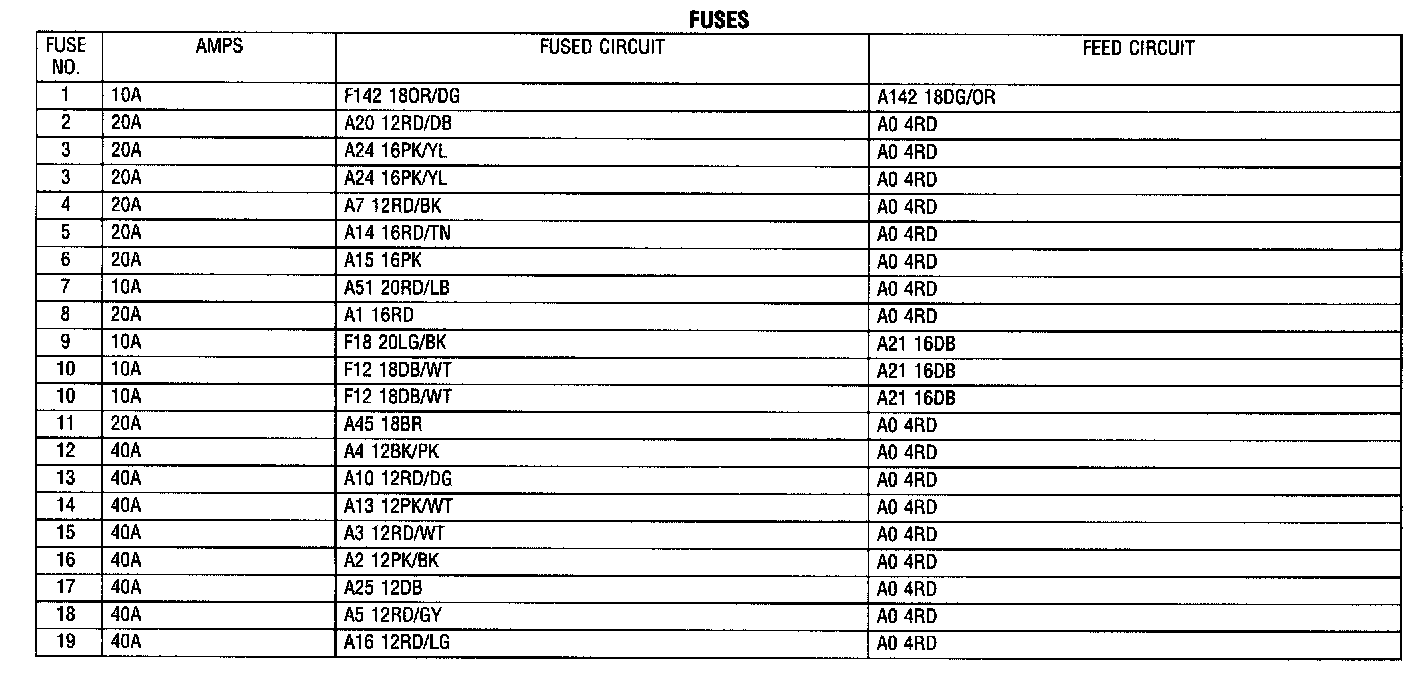

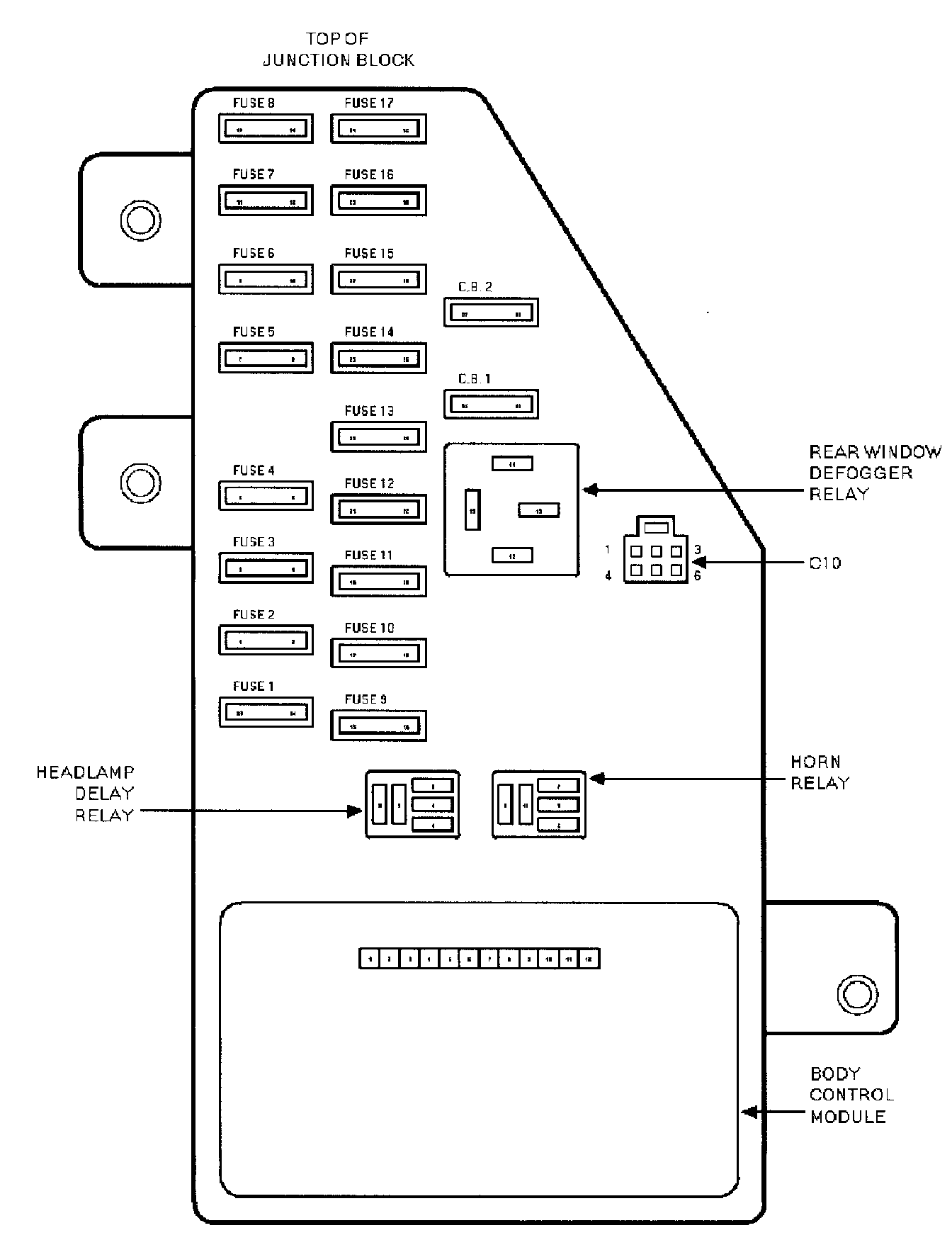

Junction Block:

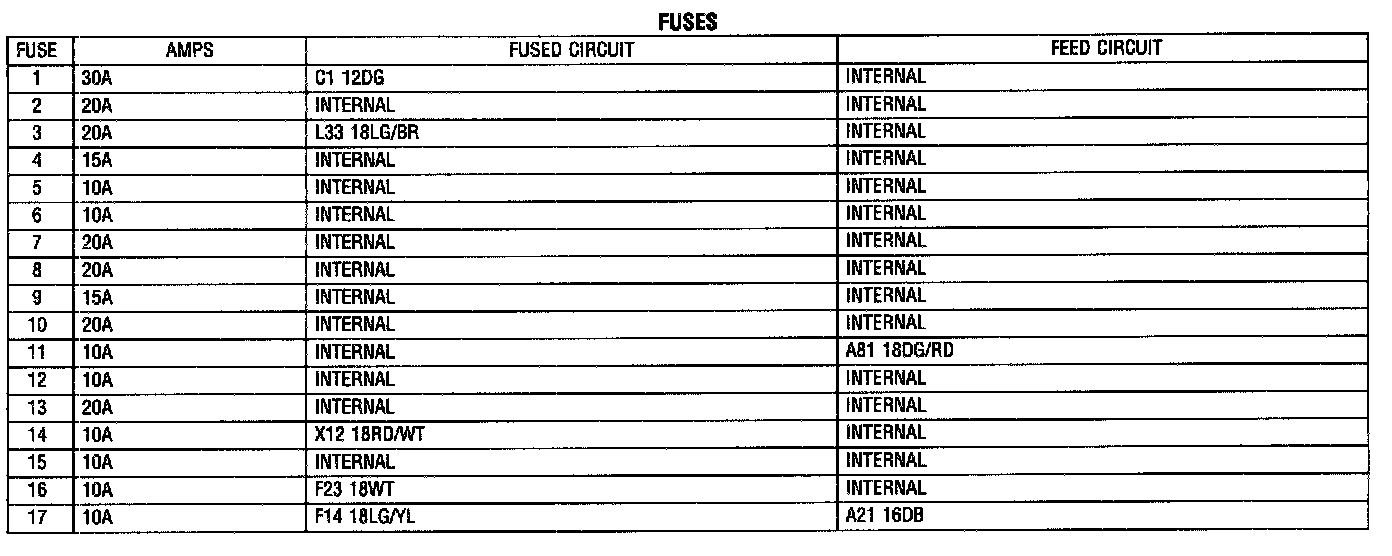

Fuses:

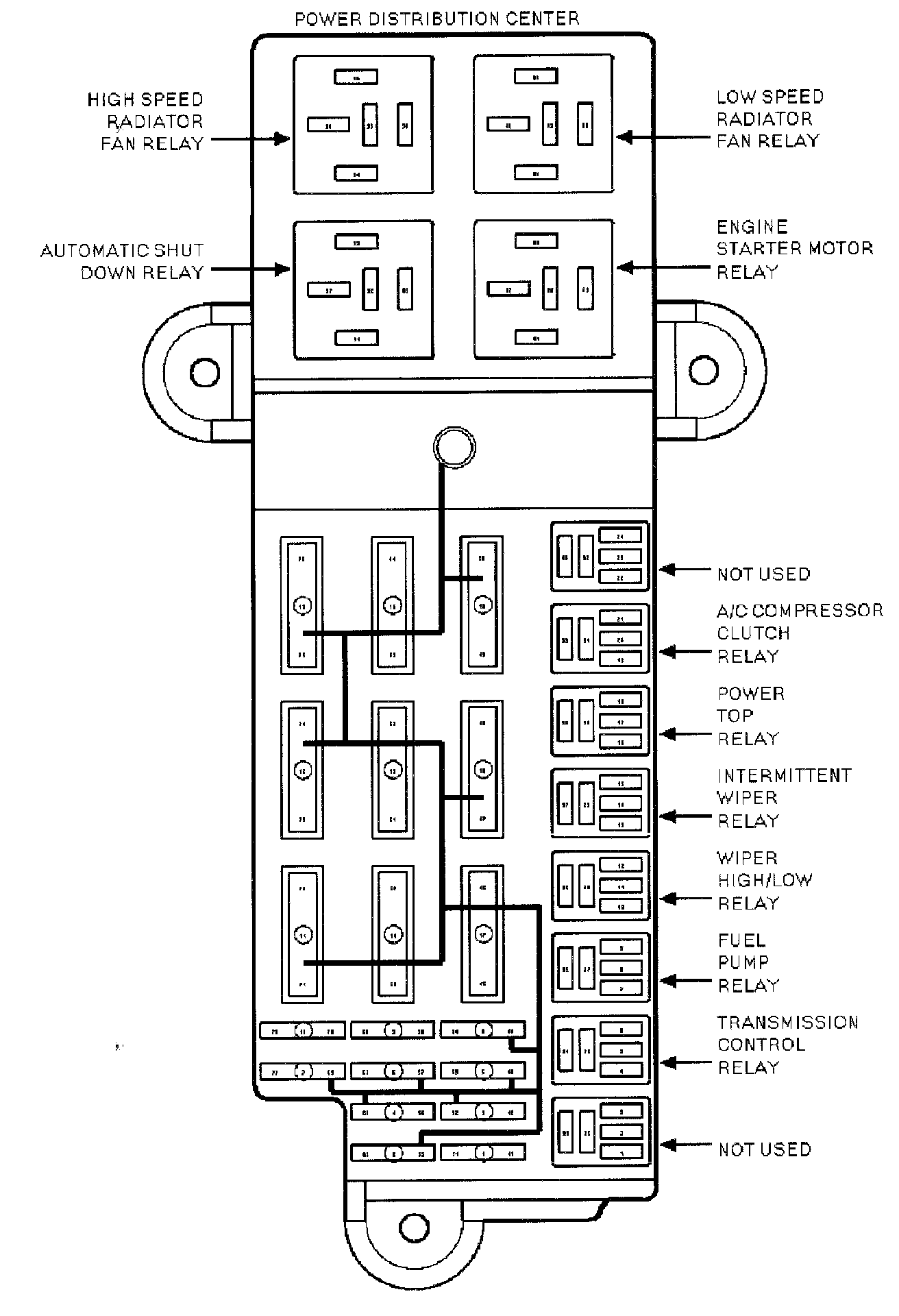

Power Distribution Center:
Fuses:
