Home
>>
Chrysler
>>
1998
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
1/1
1/1

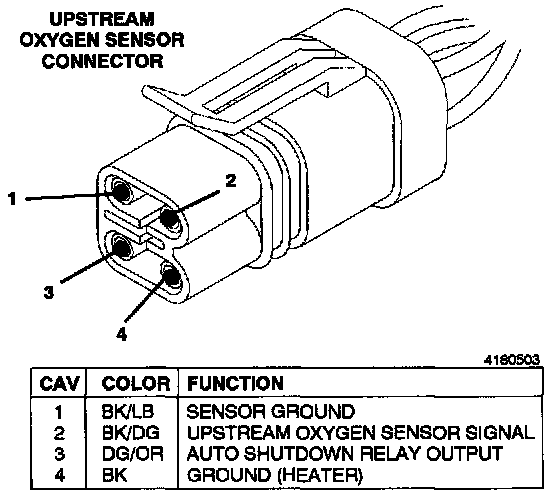

Upstream Oxygen Sensor Connector:
