Home
>>
Chrysler
>>
1998
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

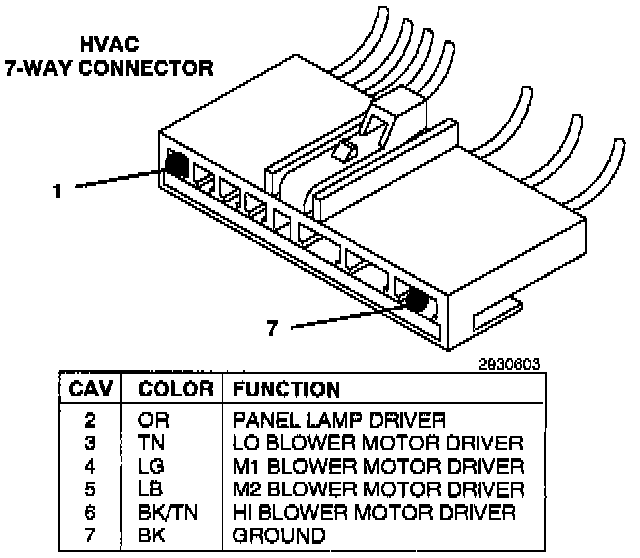

HVAC Connector:

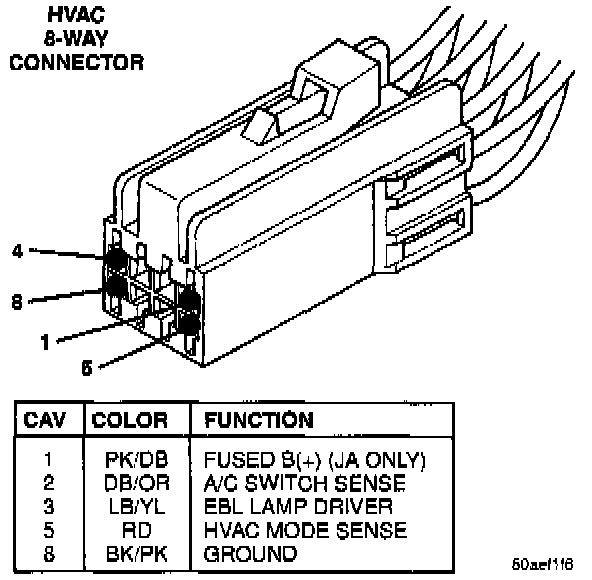

HVAC Connector:
