Harmonic Balancer - Crankshaft Pulley: Service and Repair

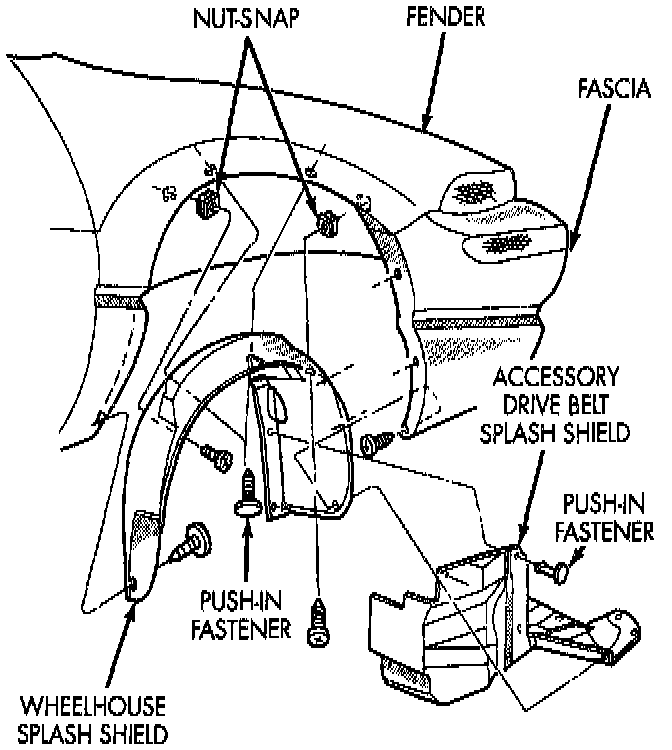

Drive Belt Splash Shield:





1. Remove drive belt splash shield.
2. Remove accessory drive belts.

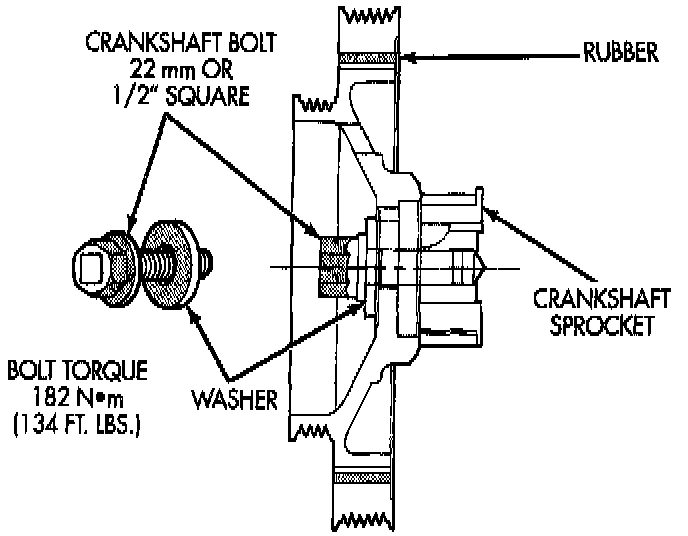

Crankshaft Damper:





3. Remove crankshaft center bolt and remove crankshaft damper.
4. Reverse procedure for installation.
