Home >> Chrysler >> 1998 >> Cirrus V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Schematic Diagrams >> CCD Bus

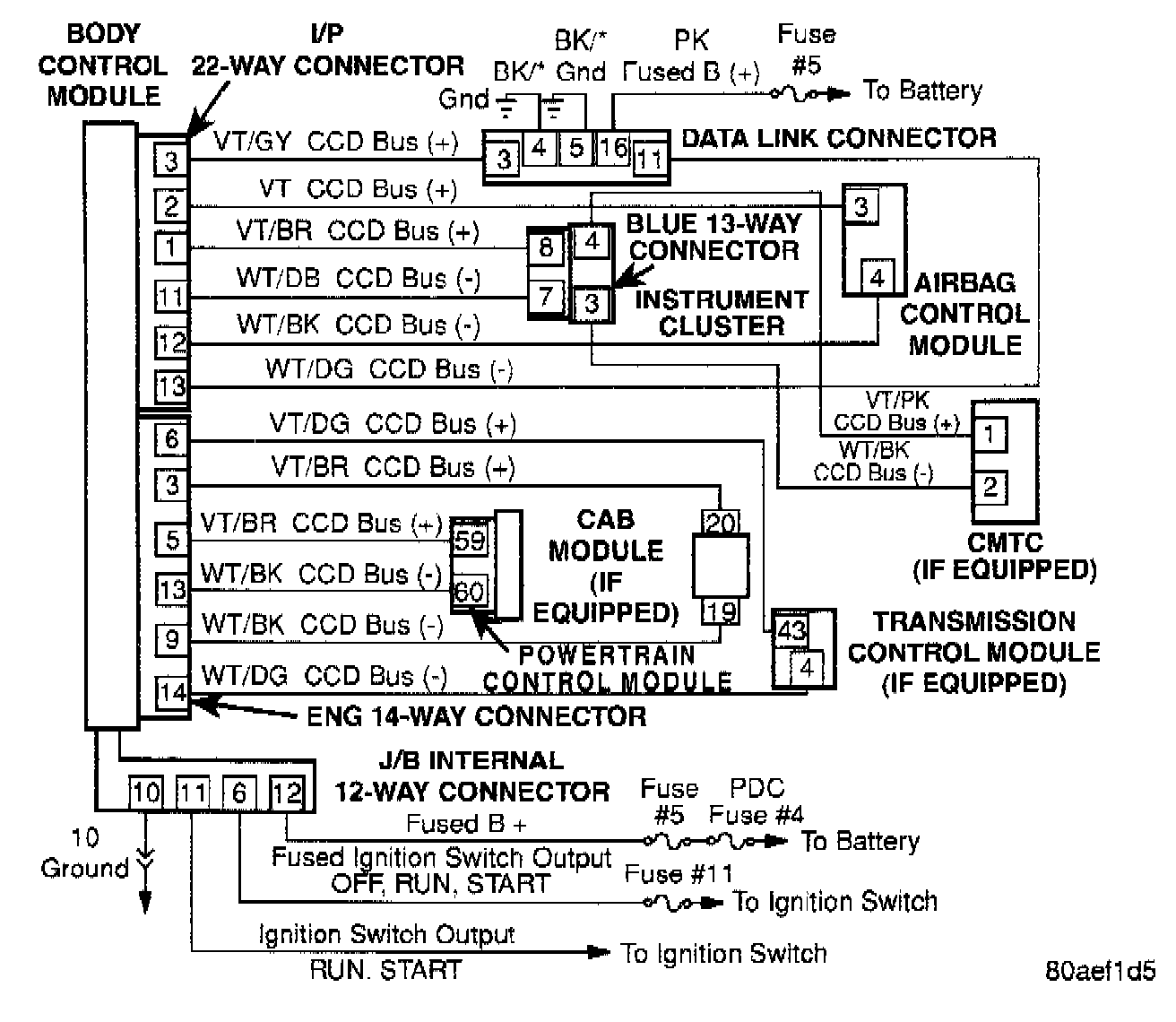

CCD Bus

CCD Bus:
