Radiator Cooling Fan Motor Relay
>>
Low Speed Radiator Fan Relay
Low Speed Radiator Fan Relay

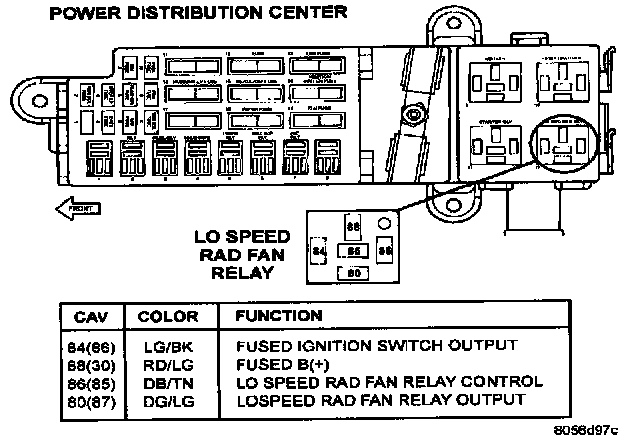

Power Distribution Center, Lo Speed Radiator Fan:
