Interior - Power Seat Wiring Diagram Revisions
NUMBER: 26-08-96AGROUP: Miscellaneous
DATE: August, 1996
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1995 Sebring/Avenger - Publication Number 81-370-5118
DESCRIPTION OF CHANGES
Revisions to the power seat wiring diagram.

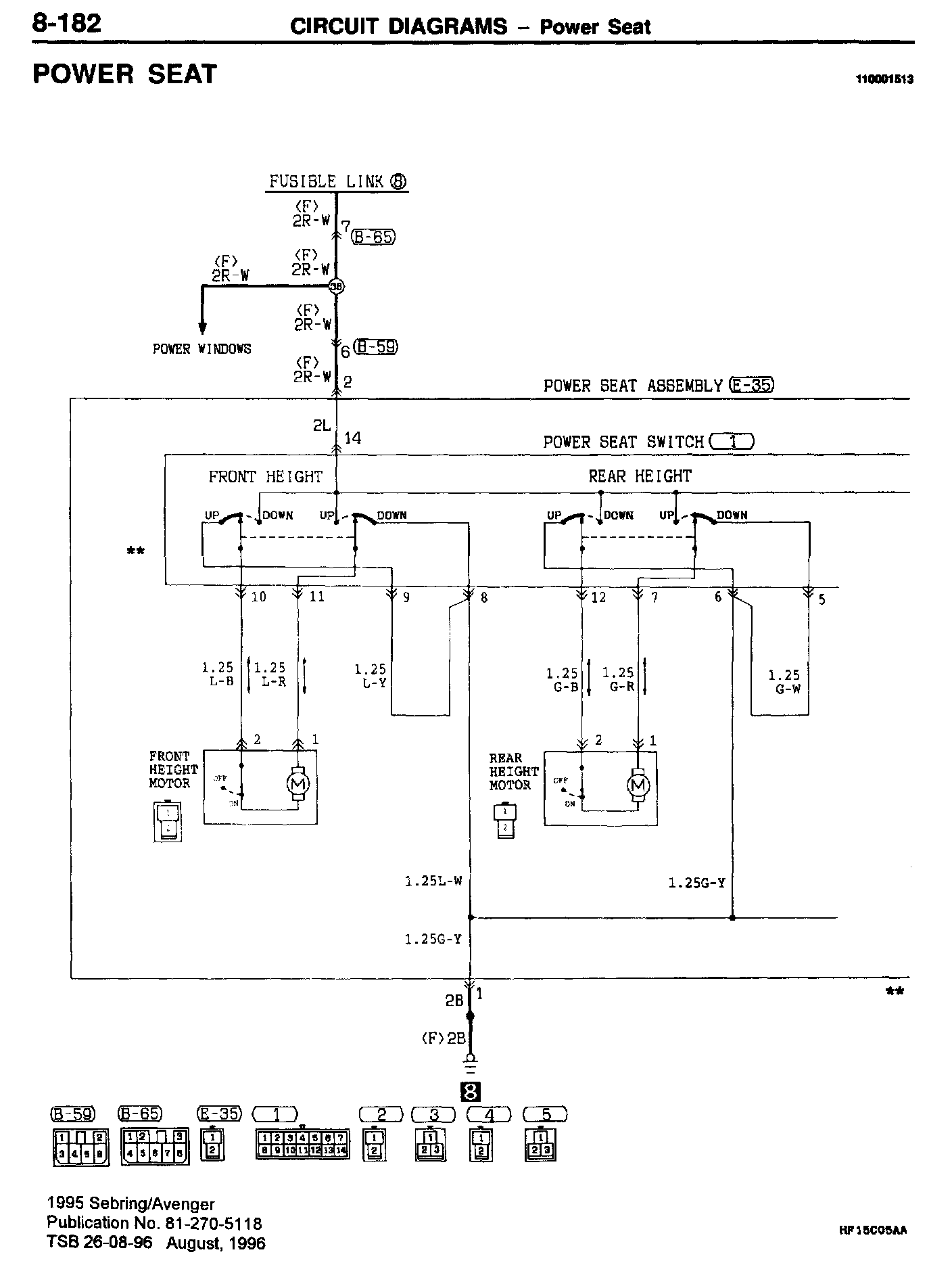

8-182

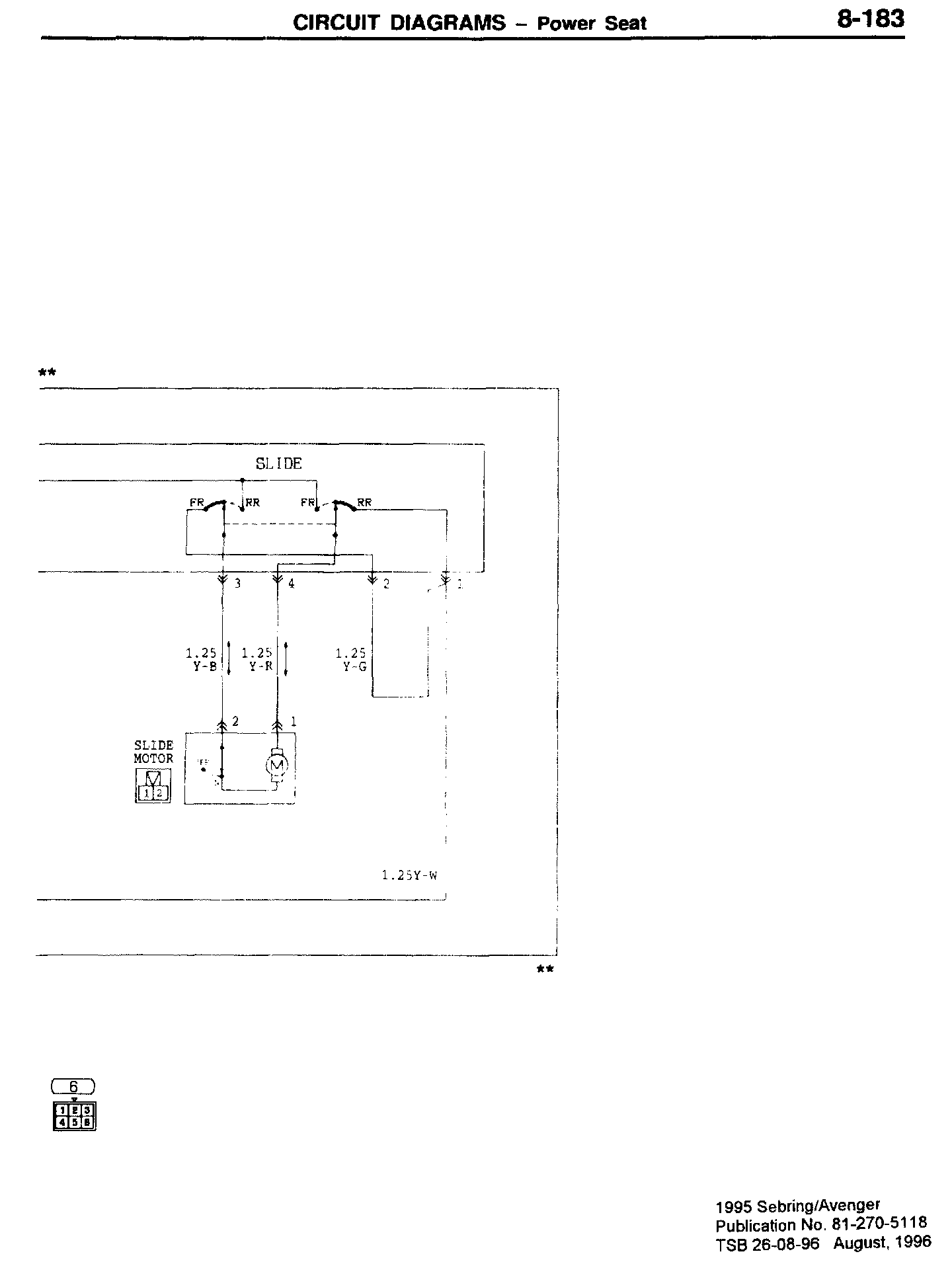

8-183
