Home
>>
Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Canister Purge Solenoid
>>
Diagrams
>>
Connector Views
Connector Views

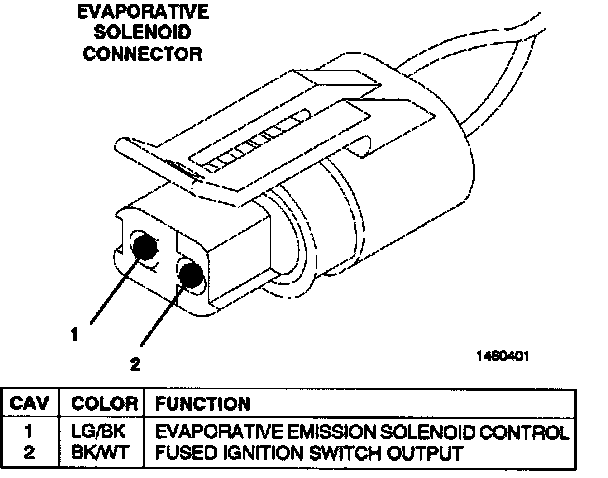

Evaporative Solenoid Connector:
